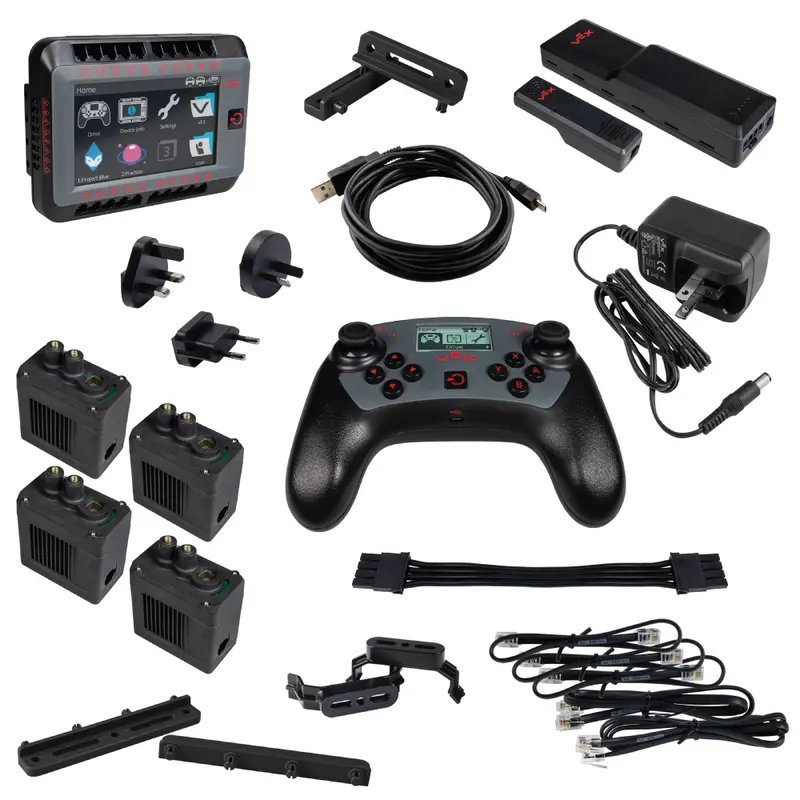

Kit Contents:

• (1) V5 Robot Brain
• (1) V5 Controller
• (1) V5 Robot Radio
• (4) V5 Smart Motors
• (1) V5 Robot Battery Li-Ion 1100mAh
• (1) V5 Robot Battery Cable
• (1) V5 Robot Battery Charger
• (2) V5 Robot Battery Clips
• (3) 300mm Smart Cables
• (1) 600mm Smart Cable
• (1) 900mm Smart Cable
• (1) USB A to Micro Cable

V5 Robot Brain

Connection

The V5 Robot Brain allows for "on the fly" device connection and port swapping. Legacy VEX EDR Sensors and Motors are also supported through eight 3-Wire ports.

Software

Select from one of eight user downloaded programs, or run device diagnostics and configuration for real-time feedback, all right from the brain.

Mounting

The V5 Robot Brain can be mounted in a variety of ways. The brain can be attached to the robot via four 8-32 mounting inserts on the bottom of the brain, or through detachable mounting flanges.

Internals

The V5 Robot Brain uses a Cortex A9 processor in tandem with a FPGA to create a device that is 15x faster than the its predecessor. The V5 Robot Brain also has expanded memory, and additional storage for user programs.

V5 Controller

Real-time Feedback

With its Monochrome LCD screen, the V5 Controller provides users with instant feedback from the Robot Brain. Programmers can send data and multilingual text to the screen for debugging and driver information.

Internals

The V5 Controller includes a programmable haptic feedback that can be triggered as events happen, such as intaking an object. The Controller's integrated 3.7v Li-ion battery can provide up to 10 hours of life on a single charge. With its USB port, the Controller can be charged in multiple ways such as a wall socket, laptop or USB power bank.

V5 Robot Battery Li-Ion 1100mAh

The V5 Robot Battery Li-Ion 1100mAh is the next evolution of the VEX EDR NiMh Battery. This Lithium Iron Phosphate (LiFePO₄) battery is equipped with circuitry and control to allow for higher sustained power and more reliable function. The V5 System as a whole is designed to produce identical motor performance at any battery charge level. This means that the same battery can be used for multiple competition matches or class periods before needing to be recharged. LiFePO₄ batteries are proven to offer longer life cycles, and are safer than Lithium Ion batteries.

• Built-in charge indicator lights
• Charge time is approximately one hour

Battery run time depends on many factors including your robot design, your driving, and the number of motors used. Robots' often get 30+ minutes of heavy drive time from a single charge. Competition teams should be able to use one Robot Battery for multiple matches without recharging. Remember that with V5, a low battery does not change the motor’s performance.

V5 Smart Motor

Gear Options

Mechanisms such as flywheels and arms do not need large external gear ratios when the driving motor is already outputting a targeted output speed or torque. Therefore, changing internal gear ratios to fit specific needs allows more efficient and compact mechanisms to be designed. Use the clear window of the V5 Smart Motor to identify one of three user-changeable colored gear cartridges:

• 36:1 (100 RPM) - High torque, low speed. Great for robot arms and lifting heavy objects
• 18:1 (200 RPM) - Standard gear ratio for drive train applications
• 6:1 (600 RPM) - Low torque, high speed. Best used for intake rollers, flywheels, or other fast moving mechanisms

V5 Robot Radio

The V5 Robot Radio allows your V5 Robot Brain to communicate with other devices such as the V5 Controller. All wireless communication to the V5 Robot Brain is done through the V5 Robot Radio, including competition control and wireless activation of VEXcode programs.

• Communicates via VEXnet 3 or Bluetooth®
• LED indicator for linked, scanning and active modes
• VEXnet 3 supports 500 simultaneous robot channels
