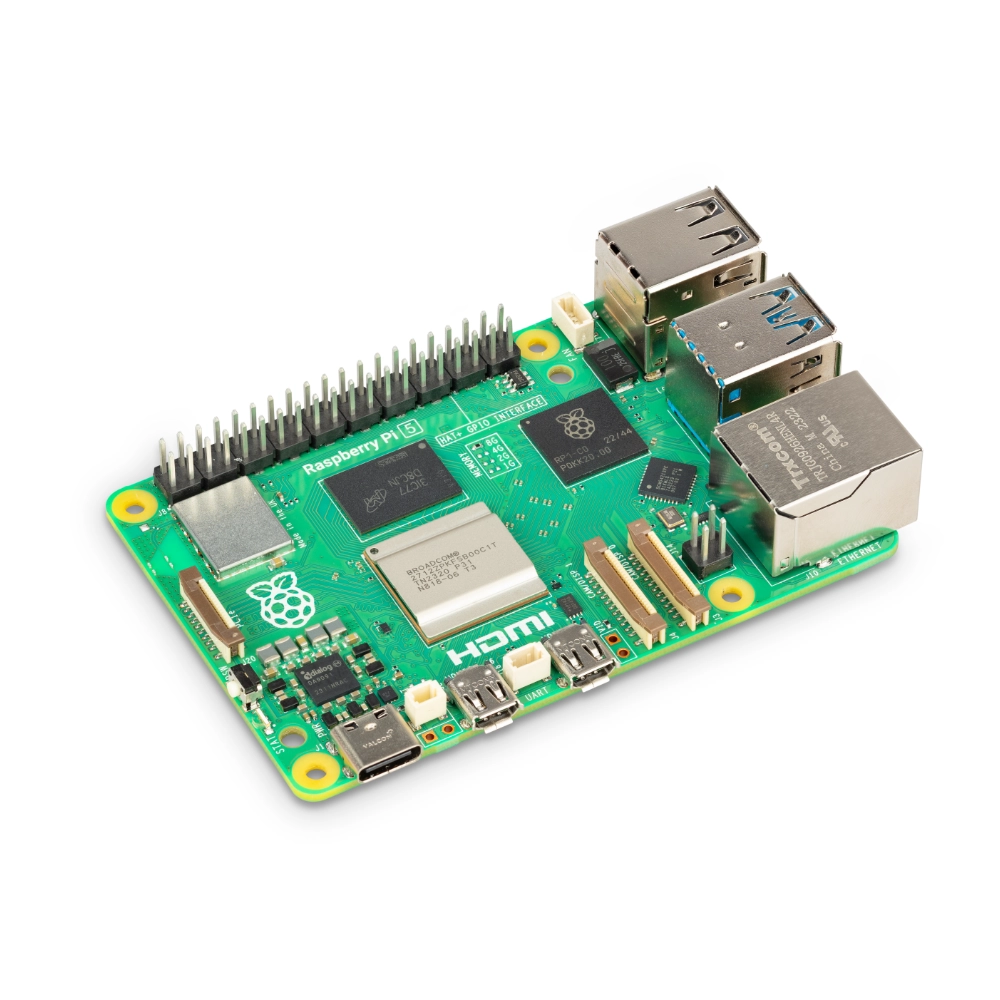

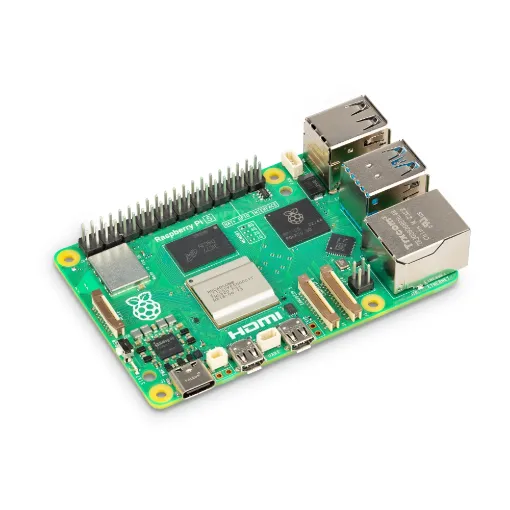

Raspberry Pi 5 - 4GB Board

Welcome to the latest generation of Raspberry Pi: the everything computer!

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.



For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

This a a 4GB Board, there are other models available:

Raspberry Pi 5 - 2GB Board

Raspberry Pi 5 -4GB Board

Discover our comprehensive Raspberry Pi 5 starter kit, offering exceptional value. Equipped with the latest generation Raspberry Pi 5 board and all essential accessories, it provides everything you need to kickstart your projects swiftly and seamlessly.

Starter Kit Contents:

Raspberry Pi 5 8GB - Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2-3x increase in CPU performance relative to Raspberry Pi 4! Raspberry Pi 5 also brings with it a huge list of great new features and improvements, making this the best Raspberry Pi yet.

Raspberry Pi 27W USB-C Power Supply - The official recommended power supply for the Raspberry Pi 5. This power supply will provide 5V/5A and enable you to use the board to its full potential and performance, ensuring a full possible current supply to USB devices.

Raspberry Pi 5 Case  - The official case for the Raspberry Pi 5, and a refinement of the previous case design, with a number of improvements and thermal features to accommodate the footprint and peak power consumption of Raspberry Pi 5. Important - remove your SD card before fitting or removing your Raspberry Pi from the case.

SanDisk 32GB MicroSD card - An authentic 32GB Class 10 SanDisk MicroSD card pre-loaded with the latest Raspberry Pi OS

Raspberry Pi MicroSD Adapter - Convert your Micro SD card into a full-sized SD

Micro-HDMI to HDMI cable - A high-speed Micro-HDMI to HDMI cable for connecting your Raspberry Pi 5 to a display, tested for compatibility with the Pi 5.

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2-3x increase in CPU performance relative to Raspberry Pi 4! Raspberry Pi 5 also brings with it a huge list of great new features and improvements, making this the best Raspberry Pi yet!

2-3x CPU performance increase
The new 64-bit quad-core Arm Cortex-A76 processor at the heart of Raspberry Pi 5 runs at 2.4GHz with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache. This new Broadcom BCM2712 SoC (System on Chip) provides a 2-3x increase in performance over the previous generation of Raspberry Pi!

Improved graphics performance with dual 4Kp60 display output
Raspberry Pi 5 delivers a substantial uplift in graphics performance from the 800MHz VideoCore VII GPU, connected to the BCM2712 via PCI Express. This allows Raspberry Pi 5 to offer full dual 4Kp60 display output via micro HDMI. These performance improvements provide a smooth desktop experience whilst browsing the internet and streaming videos.

Enhanced I/O capabilities including PCI-E!
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 "southbridge" provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality.

Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals

Peak MicroSD card performance is doubled, through support for the SDR104 high-speed mode

Single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Power button (finally!)
Makers and enthusiasts have been asking for a dedicated onboard power button on the Raspberry Pi for as long as we can remember - and Raspberry Pi 5 finally delivers this much-requested convenience!

Real-time clock (RTC)
A real-time clock (RTC) is built into the board, allowing you to maintain time/date information even when you power off or aren't connected to the internet (when a backup battery is connected). A dedicated header on the board has been added to allow the use of a backup battery for the RTC. A lithium battery with a compatible header will be available on, or shortly after, the launch of Raspberry Pi 5.

Dedicated fan header
Raspberry Pi 5 includes a new dedicated fan header to the right of the familiar GPIO pin header, allowing you to connect and run a cooling fan without interfering with your GPIO-connected devices. Now you can add HATs and other hardware without workarounds to connect a fan.

Dedicated UART header
Another handy addition to Raspberry Pi 5 is the dedicated UART header. Now you can debug and control your Raspberry Pi 5 headlessly and without interfering with your GPIO pins. This dedicated UART header also allows debugging from boot, and is designed to be used with the Raspberry Pi Debug probe for quick, convenient debugging.

Plus other improvements and changes

Mounting holes for coolers/heatsinks (designed for the Raspberry Pi Active Cooler)

Composite video header

Memory indication markers for easy board RAM identification

Unique board ID number on the board and packaging

Relocated PoE header

Audio jack removed

Flush(ish) underside to GPIO pins

Metal supporting tabs to protect components on the underside

Safeguard your Raspberry Pi 5 with a durable silicone bumper. This flexible, one-piece cover snaps onto the bottom and edges, offering reliable protection while keeping the power button and mounting holes easily accessible.

The Raspberry Piofficial keyboard includes three host USB ports for connecting external devices, such as USB Raspberry Pi mouse, USB drives, and other USB controlled devices. The product’s micro USB port is for connection to the Raspberry Pi. Via the USB hub built into the keyboard, the Raspberry Pi controls, and provides power to, the three USB Type A ports.

Note: If using with a Pi Zero, you'll need a OTG adapter cable.

Keyboard Features: The Raspberry Pi keyboard has three lock keys: Num Lock, Scroll Lock, and Caps Lock. There are three LEDs in the top right-hand corner that indicate which locks are enabled.

Num Lock – Allows use of the red number keys on the letter keys, effectively creating a numeric keypad. This mode is enabled and disabled by pressing the Num Lock key.

Caps Lock – Allows typing capital letters; press the Shift key to type lower-case letters in this mode. This mode is enabled and disabled by pressing the Caps Lock key.

Scroll Lock (ScrLk) – Allows use of the cursor keys for browsing web pages and spreadsheets without the mouse. This mode is enabled and disabled by pressing the ScrLk key while holding the Fn key.

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Documents:

Raspberry Pi Official Keyboard and Mouse
