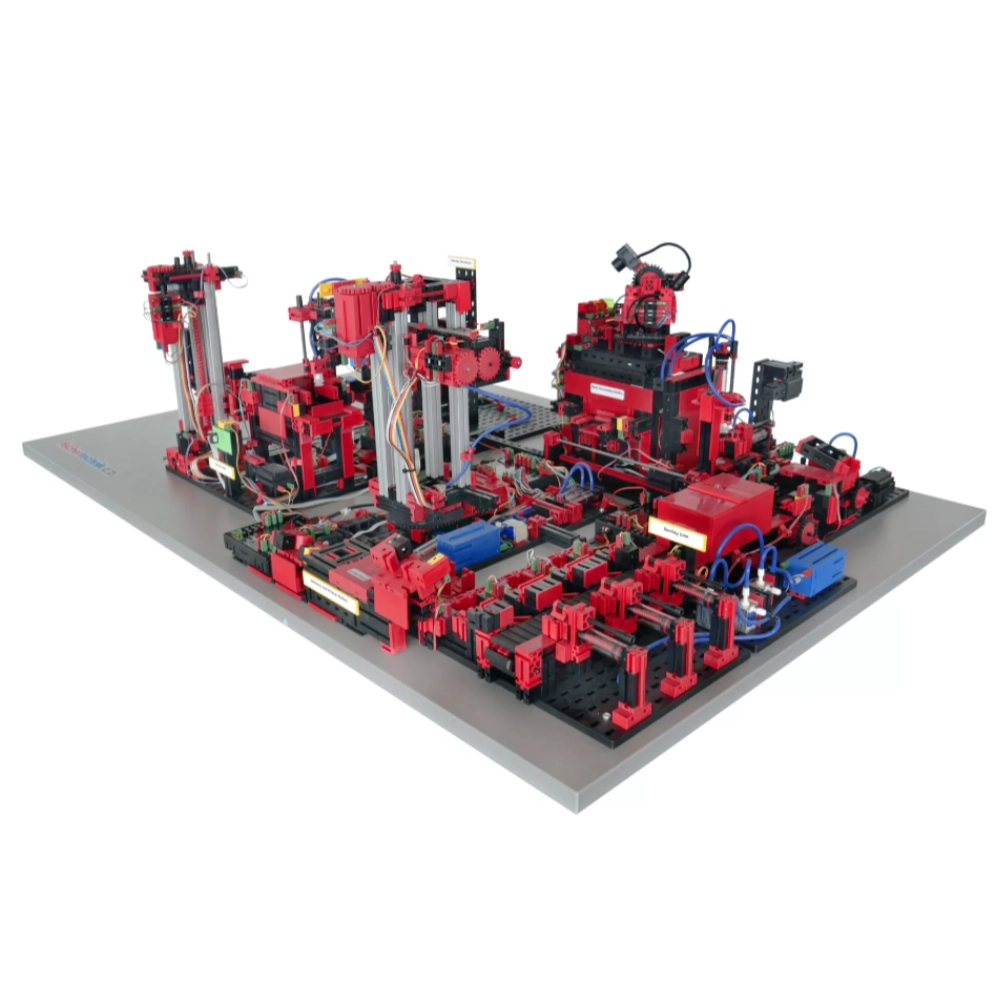

fischertechnik Training Factory Industry 4.0 in 9v V2

Product Description:

The Training Factory Industry 4.0 9V V.2 is a flexible, and robust training environment designed to explore Industry 4.0 concepts. Ideal for vocational schools, universities, and corporate training, this model replicates the ordering, production, and delivery processes in a digitized and interconnected system.

This modular solution allows users to simulate, learn, and apply digital transformation activities on a small scale before implementing them in large-scale operations, making it an essential tool for education, research, and development.

Factory Environment:
The model includes several advanced factory modules:

• High-bay warehouse and storage/retrieval station
• Vacuum suction gripper and multi-processing station with a kiln
• Sorting line with color recognition capabilities
• Integrated environmental sensor for temperature, humidity, air pressure, and air quality monitoring
• Swiveling camera with vertical and horizontal range for complete factory visibility and remote monitoring

Each workpiece is tracked via NFC, with a unique identification number (ID) enabling traceability throughout the machining process. Real-time updates on workpiece status and factory operations are displayed on the cloud-connected dashboard.

Control System:
The Training Factory is powered by six fischertechnik TXT 4.0 controllers, operating on a 9V basis. These controllers communicate via a master-slave configuration and an internal bus system. Key features of the TXT 4.0 controller include:

• Processor: Arm® dual Cortex®-A7 (650 MHz) + Cortex®-M4
• Memory: 512 MB DDR3 RAM, expandable with a micro SD card
• Display: 2.4” capacitive color touchscreen (320x240 pixels)
• Connectivity: Combined Bluetooth 5.0 and dual-band WLAN (2.4 GHz and 5 GHz)
• Outputs: 4 motor outputs (9V/250mA), 3 servo outputs (5V/2A), and additional inputs/outputs for LEDs and sensors
• Camera Interface: Compatible with USB cameras for enhanced monitoring
• Programming: Supports graphical programming with ROBO Pro Coding, Python, and other languages via a REST interface

Software:
Programming for the Training Factory is conducted using ROBO Pro Coding or Python. Users can design their software applications and load them onto the TXT 4.0 controller. The Linux-based open-source operating system allows for extensive customization and integration with existing systems.

Why Choose the Training Factory Industry 4.0 9V V.2?
This highly modular and adaptable training solution is perfect for exploring the principles of digital transformation. With cloud connectivity, remote monitoring capabilities, and advanced simulation tools, it empowers users to gain practical insights into Industry 4.0 workflows, bridging the gap between theoretical knowledge and real-world application.
