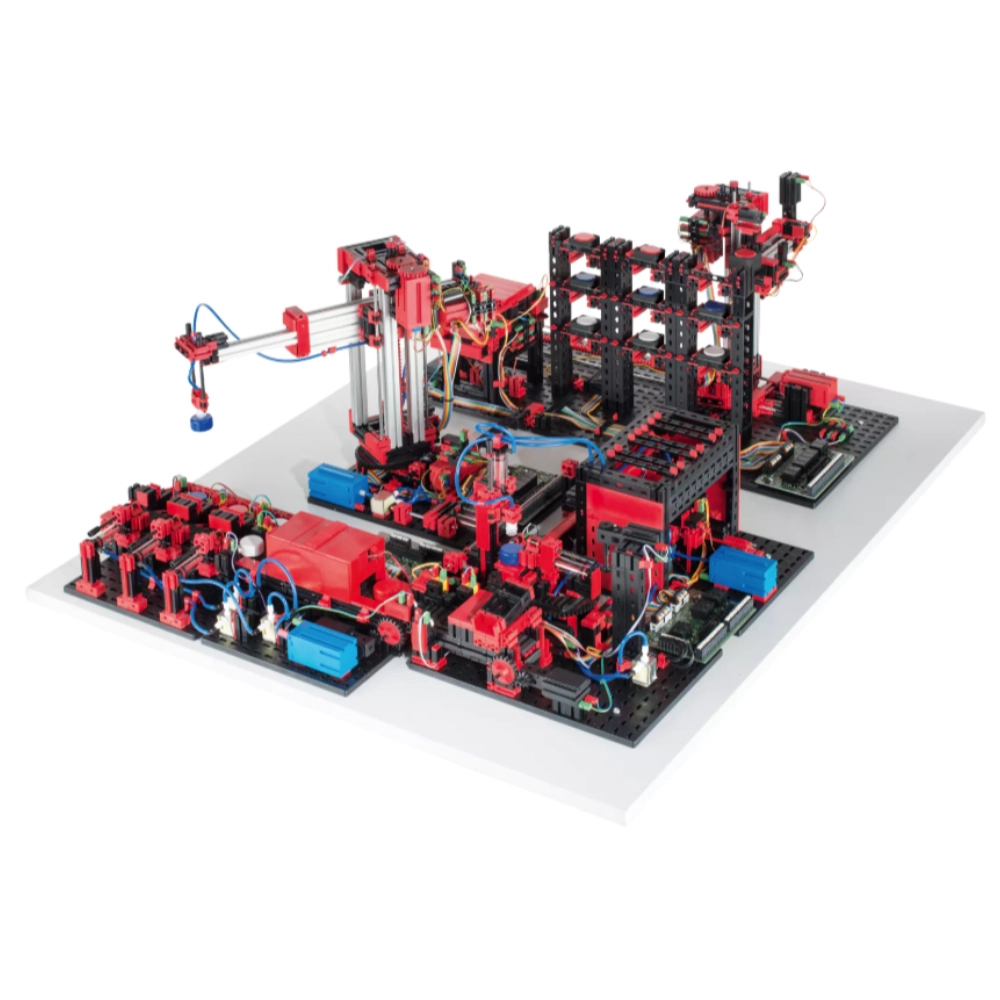

fischertechnik Factory Simulation 24v

Product Description:

The Factory Simulation 24V is a professional-grade training and simulation model, ideal for exploring the fundamentals of industrial automation. This self-contained system combines multiple factory modules to replicate a complete material cycle, making it an invaluable tool for vocational training and industrial demonstrations.

The model integrates four key components:

• Sorting Line with Color Detection: For classifying workpieces by color.
• Multi-Processing Station with Oven: Simulates heat-based processing.
• Automated High-Bay Warehouse: Facilitates storage and retrieval of materials.
• Vacuum Gripper Robot: Enables precise handling and movement of workpieces.

The workpieces are transported through the system, starting from retrieval in the Automated High-Bay Warehouse, processing in the Multi-Processing Station, sorting in the Color Detection Line, and returning to storage in the warehouse. This closed-loop process provides a realistic representation of industrial workflows.

Control System:
The model is designed for seamless integration with a 24V PLC control system (not included). It features a circuit board equipped with relays for reversing motor directions. All inputs and outputs can be connected via a 26-pin jack plug or series terminals with push-in connectors, ensuring easy and flexible setup.

Key Specifications:

• Power Requirements: Current consumption: approximately 4.8A
• Digital Inputs: 22
• Analog Inputs: 1 (0-10V DC)
• Fast Counting Inputs: 5 or 10 (with direction detection)
• Outputs: 35 (24V)

Why Choose the Factory Simulation 24V?
This pre-assembled, robust training model is perfect for hands-on learning and demonstration of industrial automation processes. Its realistic material cycle, modular components, and PLC compatibility provide an engaging and practical environment for education and training.
