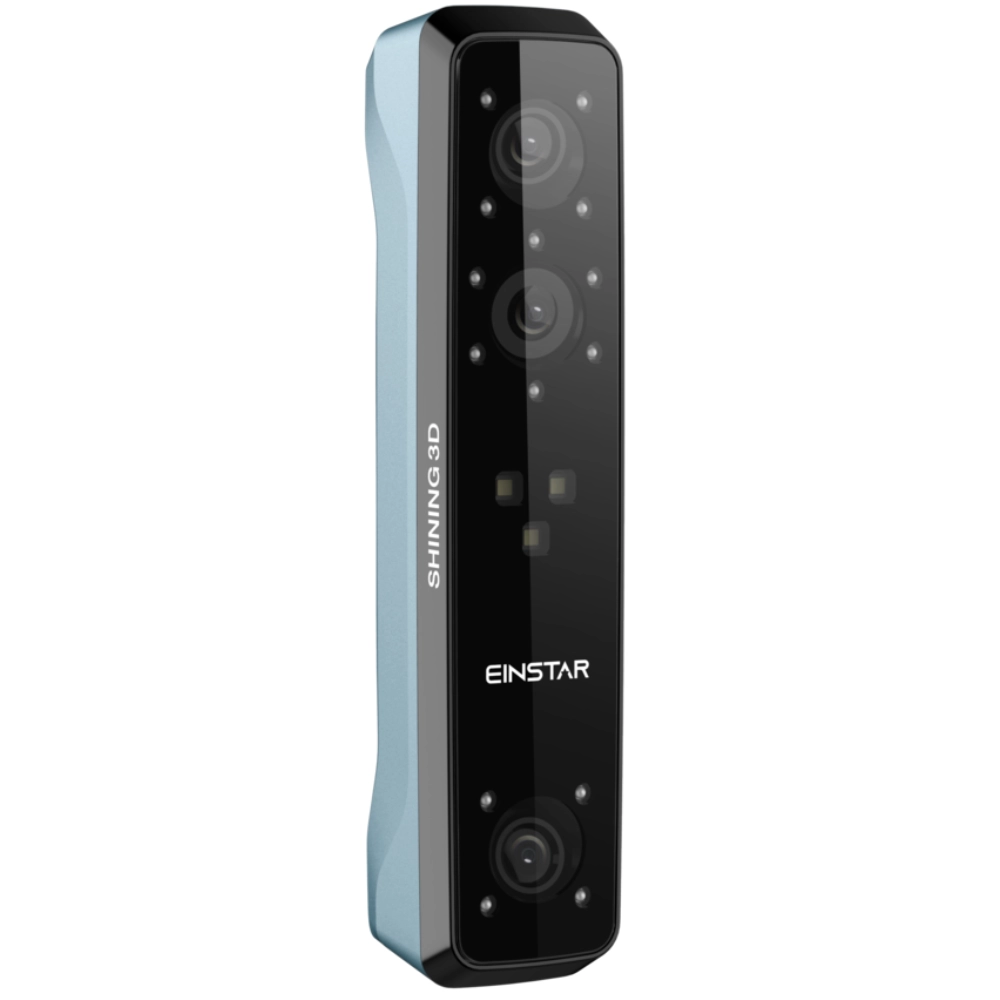

    Einstar Handheld 3D Scanner

    The Einstar handheld 3D scanner offers premium 3D scanning capabilities at a budget-friendly price, democratizing access to top-notch 3D data. The standard package presents a sleek 3D scanner paired with the intuitive Exstar software. Moreover, it comes with a stylish, lightweight carrying case equipped with essential accessories: a protective silicone cover, a comprehensive user manual, positioning markers, a lens-cleaning cloth, a convenient carrying strap, and the necessary power and USB cables.

  • Support multiple data format outputs, compatible with 3D printers and 3D design softwares.
  • Collect high density point cloud data fast and easily with point distance up to 0.1mm.
  • Benefit from built-in RGB color camera. 3D data with authentic colors.
  • Built-in detail enhancement technology optimizes the point cloud for complete data acquisition.
  • Smooth and fast, scanning speed up to 14 FPS, with smart tracking performance, automatic alignment & intelligent algorithm
  • Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects.
  • Extremely Easy to Use - only one USB cable for data transmission and power. Easy to setup, plug and play
  • No projector light during scanning process - comfortable and safe for eyes.

  • SKU: EINSTAR SCANNER
    Availability: 1 in stock
    €1249.99
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Scan Mode Structed Light Scan
    Point Distance 0.1 mm ~ 3 mm
    Light Source Infrared VCSEL structured light
    Working Distance Effective Working Distance: 160mm-1400mm; Optimal Working Distance: 400mm
    Depth of Field 160-1400mm
    Maximum FOV 434mm*379mm (under optimal work distance)
    Scan Speed 980,000points/s, up to 14FPS
    Align Modes Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
    Safety Eye-safe
    Texture Scan Yes
    Outdoor Scanning Yes
    Interface USB2.0 or above
    Output Formats OBJ; STL; PLY; P3; 3MF
    Scanner Size 220mm*46mm*55mm
    Carrying Case Size 245mm*245mm*90mm
    Scanner Body Weight 500g
    Operating Temperature Range 0-40℃
    Operating Humidity Range 10-90%
    Certifications CE, FCC, ROHS, WEEE, KC
    Recommended Configuration OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB
    Basic Computer Configuration OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB



     *Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.

    *Global Markers alignment is only available in Object Scan Mode

    *Einstar must require computer equipped with NIVIDA graphics card

    *
    *
    *
