Pimoroni Display HAT Mini for Raspberry Pi

A generous 2.0" (320 x 240) IPS LCD display for Raspberry Pi with lots of tasty baked in functionality.

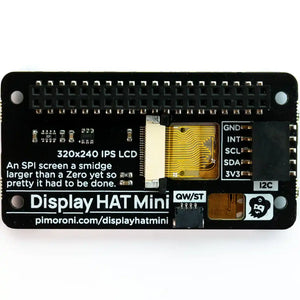

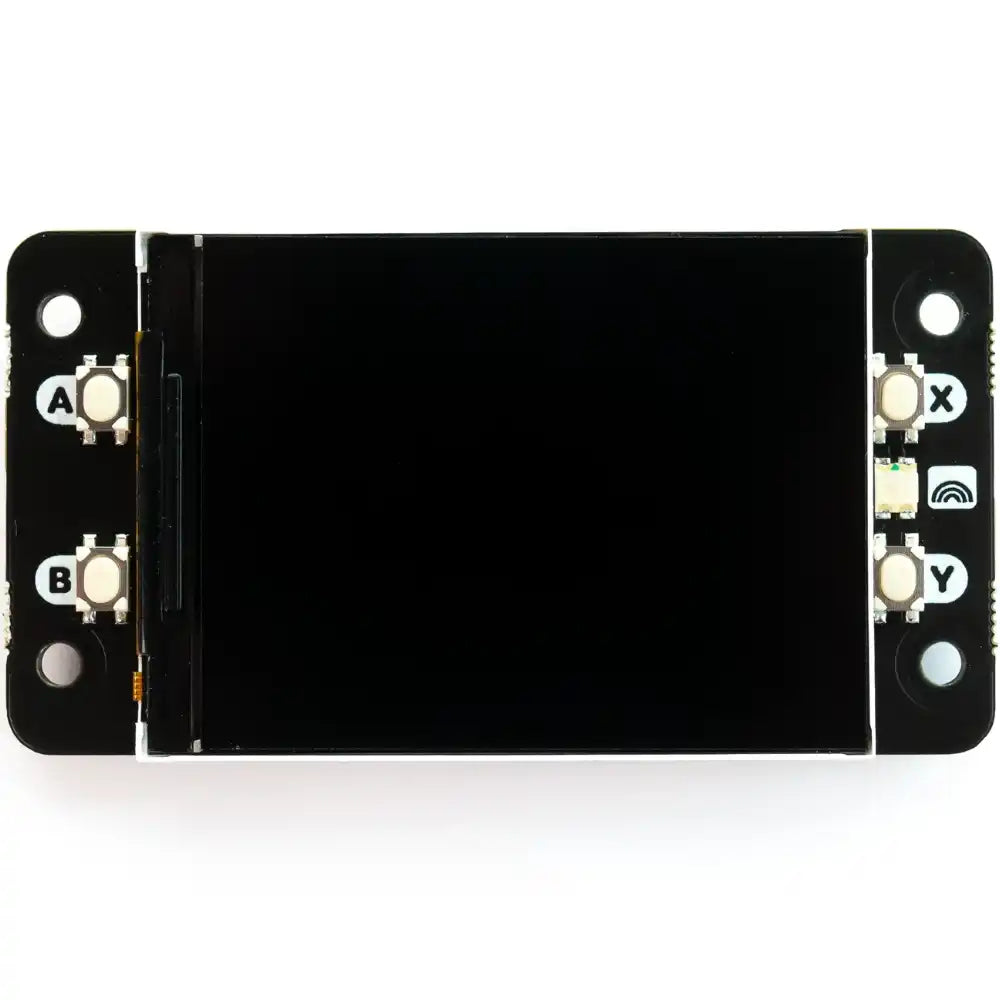

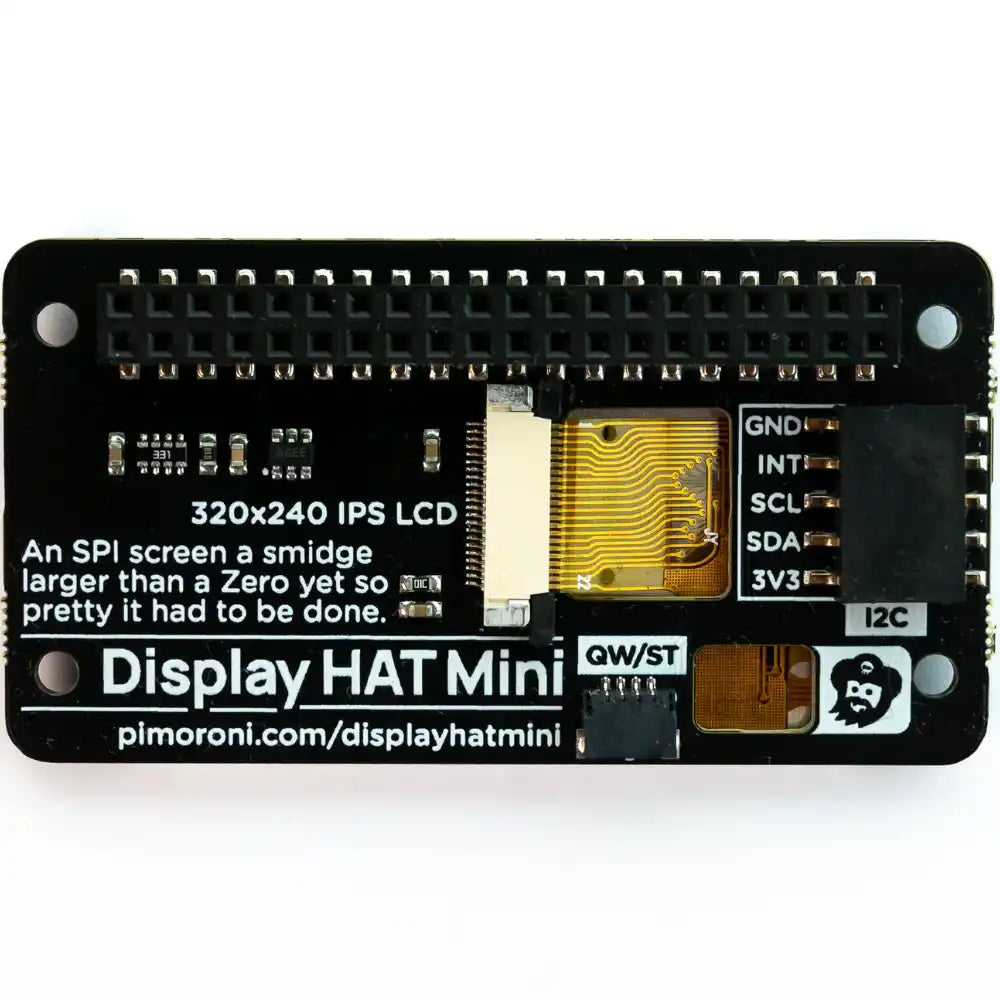

Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Pi with your digits and a RGB LED for notifications. Pimoroni have also squeezed in a QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header so it's a doddle to connect up different kinds of breakouts.

It will work with any model of Pi with a 40 pin header, it goes with the Raspberry Pi Zero particularly well - Pimoroni have included a pair of standoffs so you can use to bolt HAT and Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT - it's around 5mm taller than a Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).

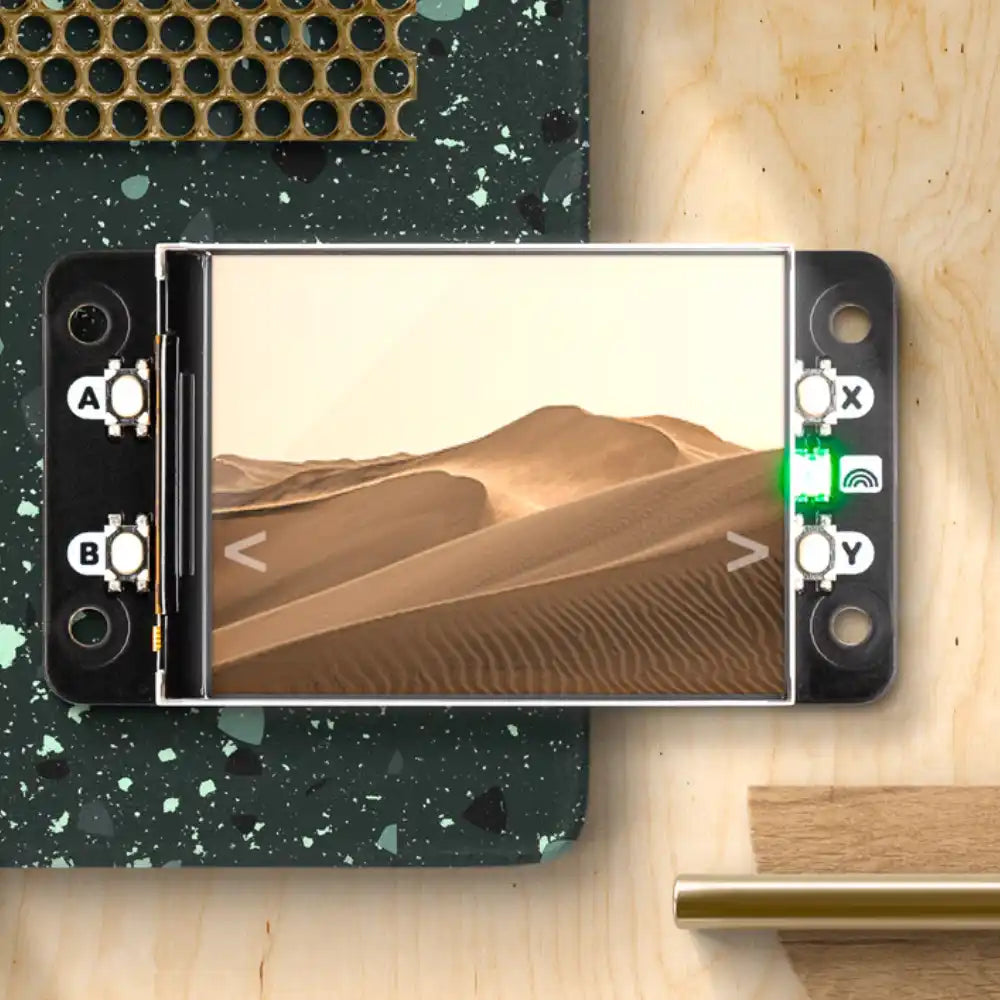

Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!

Features:

2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours)

4 x tactile buttons

RGB LED

Qw/ST (Qwiic/STEMMA QT) connector

Breakout Garden / I2C header

Pre-soldered socket header for attaching to Raspberry Pi

Compatible with all models of Raspberry Pi with a 40 pin header.

Fully assembled

No soldering required (as long as your Pi has header pins attached).

Dimensions: approx 65.5mm x 35mm x 9mm (W x H x D, includes header and display). With a Pi Zero attached with standoffs, the total depth is 17mm.

Screen usable area: 40.8mm x 30.6mm (L x W)

Pinout

Schematic

Dimensional drawing

Display HAT Mini Python library

ST7789 Python library

Includes

Display HAT Mini

2 x 10mm standoffs

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Raspberry Pi Zero(but needs Male 40-pin 2x20 HAT Header for Pi Zero)
