Kitronik Miniature Buzzer 6v 10 Pack
SKU: KI 3306
Sale price
€11.95
VAT included
Shipping calculated at checkout

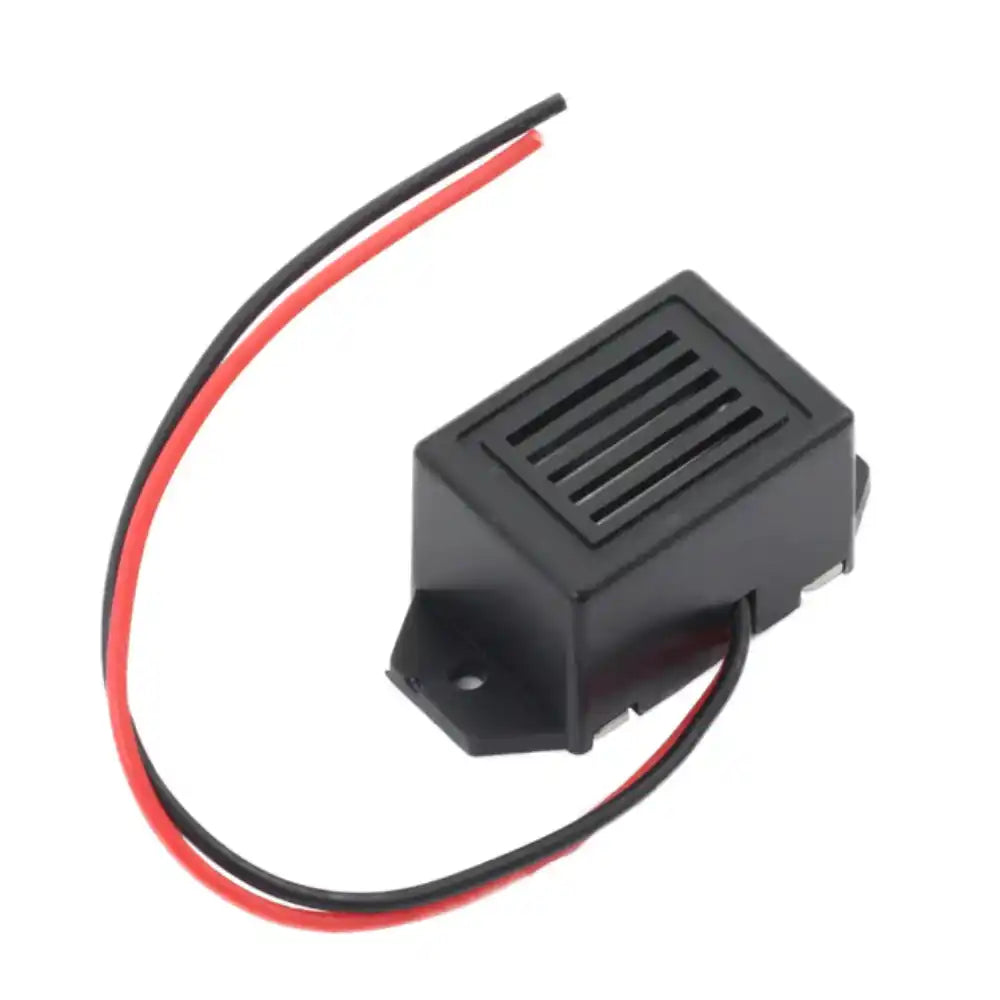

These Miniature Buzzers are a low cost miniature transistor oscillator 6V buzzer with flying leads. They have a single-tone frequency of 400hz and a sound output of 75dB @ 200mm. They are rated for 4V - 8V (6V nominal) and a current of 25mA and the driver circuitry is built in. These buzzers are supplied as a pack of 10.
The buzzer unit is L23mm x W17mm x H15.5mm, with fixing centres at 27.5mm, which gives a total length measurement of 33.5mm. The colour-coded (red & black) flying leads are 100mm. To ensure optimum performance and to protect the buzzer, ensure that the supply (e.g. batteries) is connected in the correct configuration.
Features:Low-cost miniature transistor oscillator 6V buzzer with 100mm flying leads.
They have a single-tone frequency of 400hz and a sound output of 75dB @ 200mm.
Driver circuitry is built in.
Rated for 4V - 8V (6V nominal) and a current of 25mA.
L23mm x W17mm x H15mm, with fixing centres at 27.5mm, which gives a total length measurement of 33.5mm.
Supplied as a pack of 10.
Dimensions:Length: 23mm.
Width: 17mm.
Height: 15.5mm.
Fixing Centres: 27.5mm.
Total Length: 33.5mm.
The buzzer unit is L23mm x W17mm x H15.5mm, with fixing centres at 27.5mm, which gives a total length measurement of 33.5mm. The colour-coded (red & black) flying leads are 100mm. To ensure optimum performance and to protect the buzzer, ensure that the supply (e.g. batteries) is connected in the correct configuration.
Features:
Dimensions:
