Kitronik Digital Logic Pack for Inventor's Kit for the BBC microbit

Learn to think logically with the Digital Logic Add-On for the Inventor's kit for micro:bit! This kit, along with Kitronik's Inventor's kit, serves as an introduction to logic gates and how they can be used in conjunction with the microbit.

Logic gates are the basic building blocks of digital integrated circuits, the chips found in the majority of electronic products today. Although these experiments explore how individual logic gates work, in chips there could be millions of individual logic gates, depending on the size and complexity of the chip. For example, there are approximately 1.4 billion transistors in a quad core i7. If we assume that the average gate requires three transistors then that would give approx. 450 million gates.

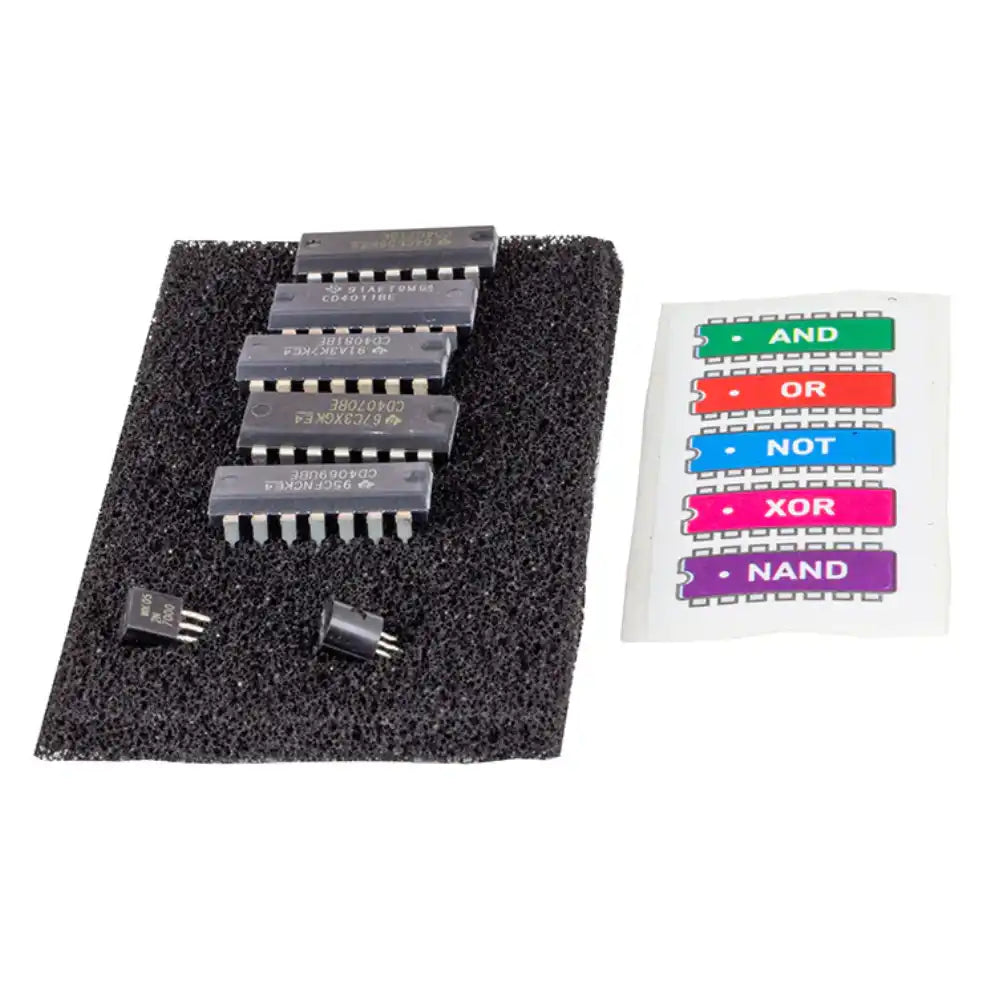

Included in this kit are 5 IC's, each a different type of logic gate. They are; AND, OR, XOR, NAND, and a NOT Gate. There are also colour coded stickers included, and these colours are used throughout the booklet in the circuit diagrams. The kit also contains 2 x 2N7000 FETs and a pack of 10 male to male jumper wires. Each experiment also makes use of components from our Inventor's kit for micro:bit, often LEDs as they offer a visual and immediate indication of the 'state' of gate inputs and outputs.

The code has been created in the Microsoft MakeCode Editor and the code for each of the experiments can be downloaded from the resources section below. Kitronik have also produced Python code examples for each of the experiments, these are also available as a download from the resources section.

Features:

Offers an easy to understand introduction to Digital Logic gates and combining these gates with the micro:bit.

This kit can be used as a teaching aid for Basic Digital Logic curriculum at KS3.

A fun and hands on introduction to the building blocks of ICs.

Code can be created with the Microsoft MakeCode editor and also in the Python editor.

The code examples have also been provided as a download from the resources section below. Choose from either blocks or Python.

The topics covered include; Truth Tables, Semiconductors and state electricity, and how to use gates in conjunction with the micro:bit via code.

Learn how to build and code the 7 following experiments;

-- EXP.1 - Introduction to ‘NOT’ Gates.
-- EXP.2 - Introduction to ‘AND’ Gates.
-- EXP.3 - Introduction to ‘OR’ Gates.
-- EXP.4 - Introduction to ‘NAND’ Gates.
-- EXP.5 - Introduction to ‘XOR’ Gates.
-- EXP.6 - Half Adder Circuit.
-- EXP.7 - Full Adder Circuit With Binary To Decimal Converter.
Contents:

1 x Quad 2 input AND IC.

1 x Quad 2 input OR IC.

1 x Hex NOT IC.

1 x Quad 2 input NAND IC.

1 x Quad 2 input XOR IC.

2 x 2N7000 FET.

10 x M-M Jumper Wires.

1 x Set of 5 colour coded IC Stickers.

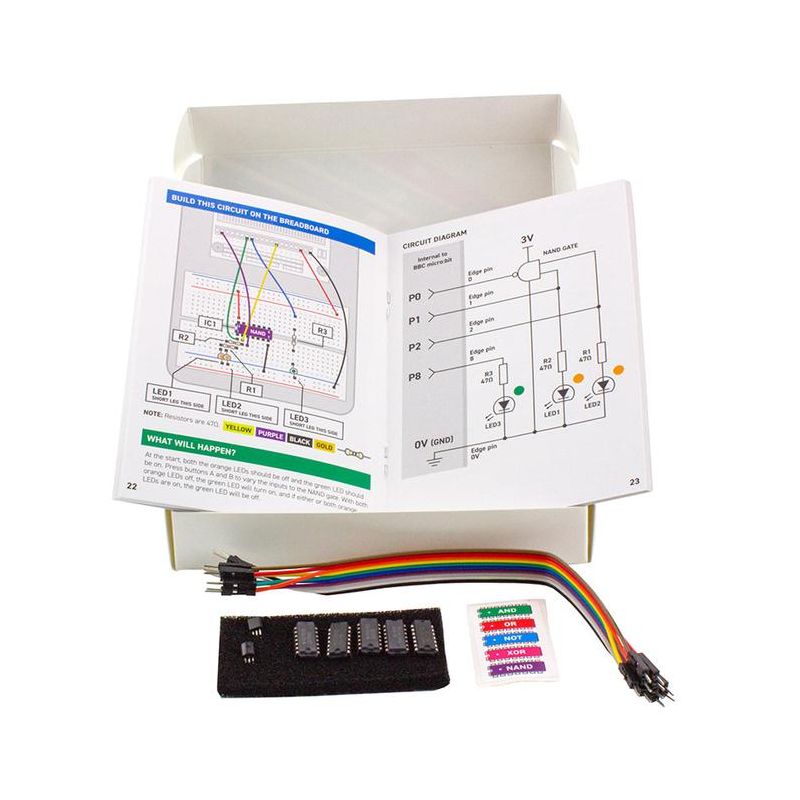

Tutorial booklet, containing 7 experiments.
