VEX Motor Controller 29
SKU: VEX 2762193
Sale price
€16.50
VAT included
Shipping calculated at checkout
Motor Controller 29
276-2193

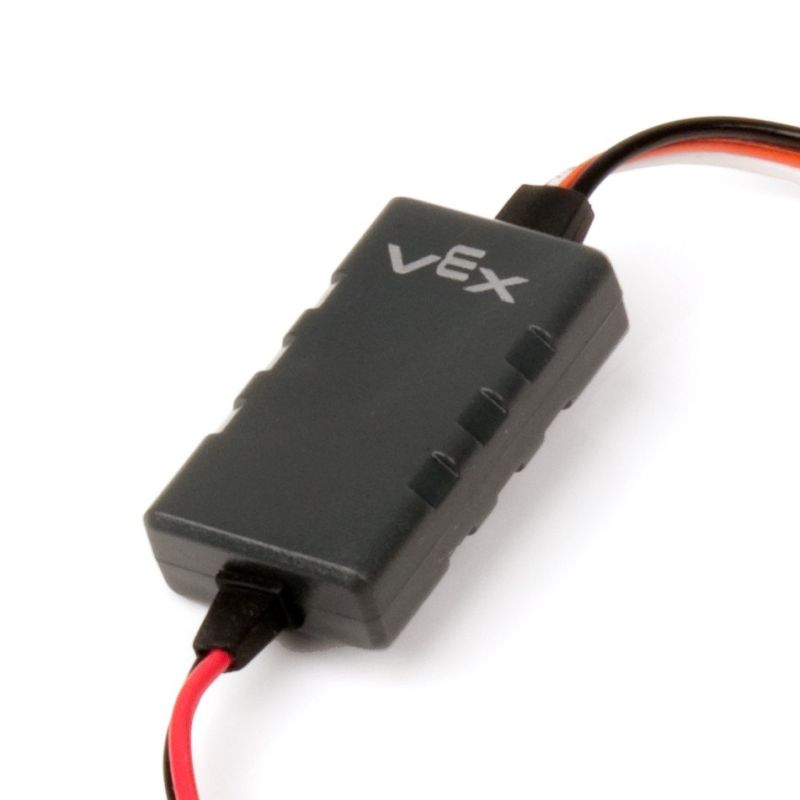

The VEX Motor Controller 29 uses a standard PWM signal (like that originating from the 3-wire ports on VEX Microcontrollers) to drive a VEX 2-Wire Motor.
Note:We recommend using no more more than one (1) 3-Wire extension cable in between the Motor Controller 29 and a VEX Microcontroller. For longer extensions, use 2-Wire extension cables in between the Motor Controller 29 and a VEX 2-Wire motor.
Compatible with 3-wire motor ports on all VEX Microcontrollers
Inputs
Black Wire - Ground
Orange Wire - Power
White Wire - PWM Signal: 1ms - 2ms will give full reverse to full forward, 1.5ms is neutral
Max Battery Voltage:Max battery voltage: 8.5V (with fully charged 7.2V battery)
Max Current:Max current: 4 A
Only 2 in stock
More Information
Motor Controller 29
276-2193
The VEX Motor Controller 29 uses a standard PWM signal (like that originating from the 3-wire ports on VEX Microcontrollers) to drive a VEX 2-Wire Motor.
Note:We recommend using no more more than one (1) 3-Wire extension cable in between the Motor Controller 29 and a VEX Microcontroller. For longer extensions, use 2-Wire extension cables in between the Motor Controller 29 and a VEX 2-Wire motor.
Compatible with 3-wire motor ports on all VEX Microcontrollers
Inputs
Black Wire - Ground
Orange Wire - Power
White Wire - PWM Signal: 1ms - 2ms will give full reverse to full forward, 1.5ms is neutral
Max Battery Voltage:Max battery voltage: 8.5V (with fully charged 7.2V battery)
Max Current:Max current: 4 A
