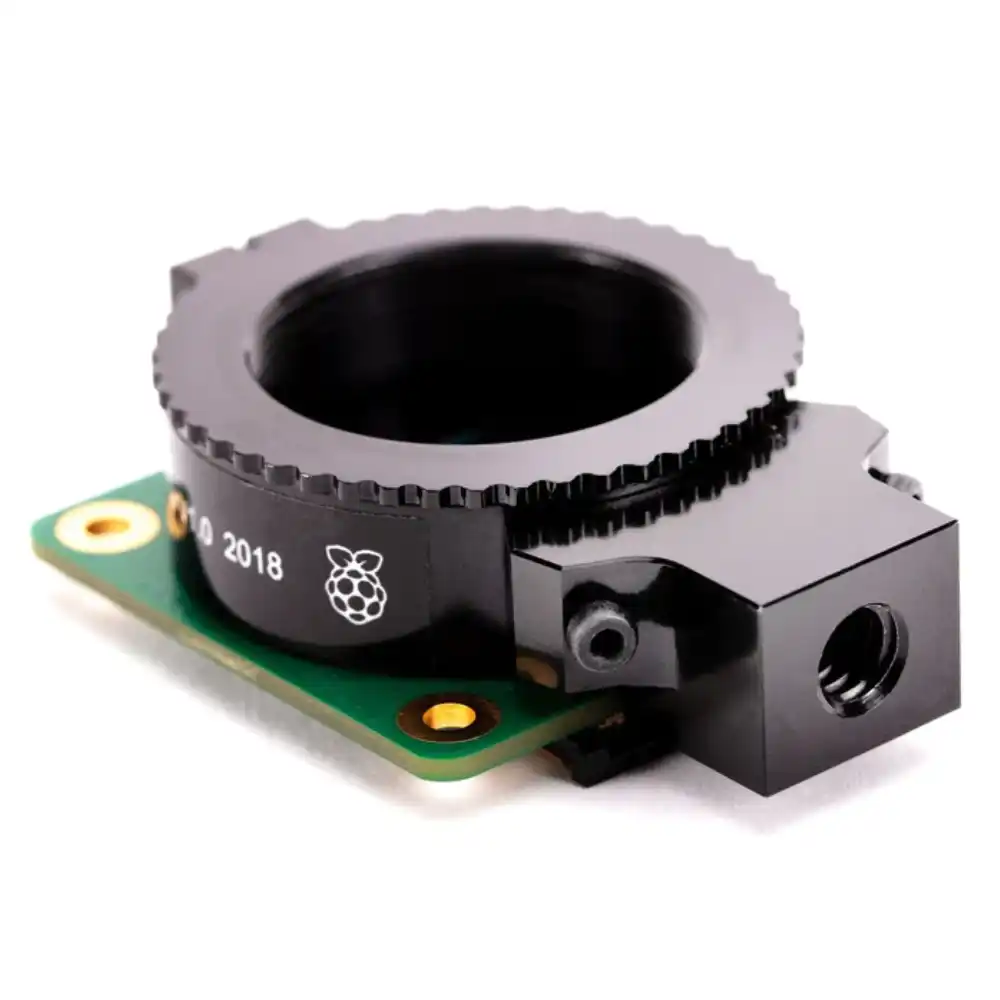

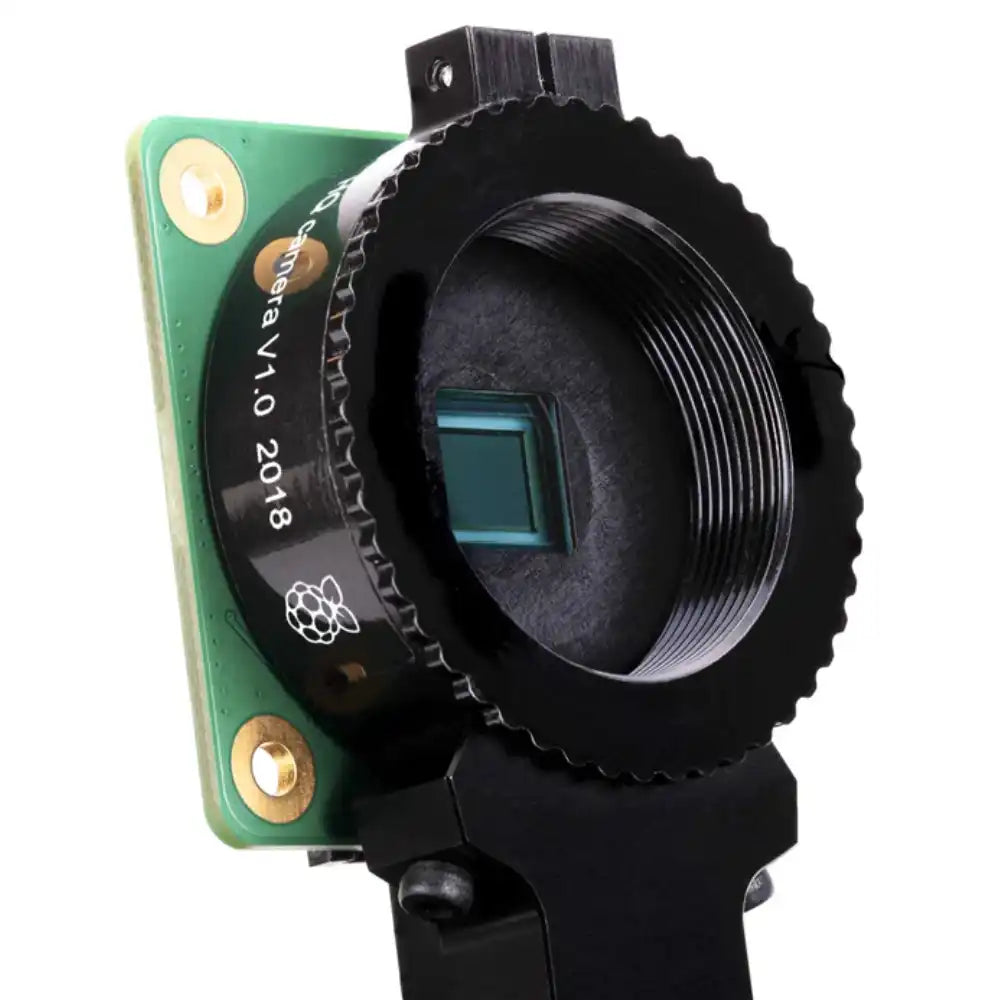

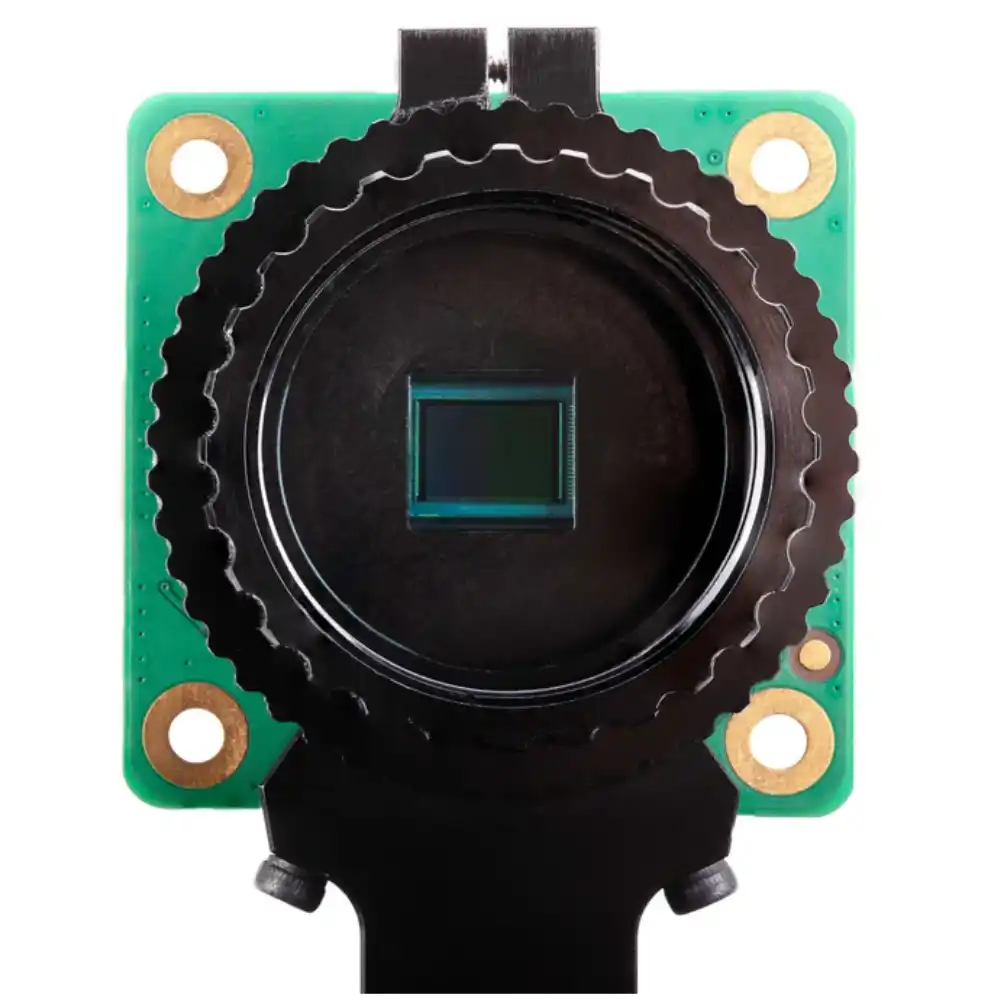

Raspberry Pi High Quality Camera Module
VAT included
Shipping calculated at checkout
To use this camera with a Raspberry Pi 5, you will need this adapter cable.
To use this camera with a Raspberry Pi Zero, you will need this adapter cable.
Please note: This module does not function without a lens. Compatible official lens options include:
The camera supports interchangeable C- and CS-mount lenses, offering maximum flexibility for different project requirements. A C-CS adapter is pre-fitted.
53 in stock
More Information
Resources
High Quality Camera Getting Started Guide
Official Product Information Sheet
Technical Specification
Sensor:
Sony IMX477R stacked, back-illuminated sensor
12.3 megapixels
7.9 mm sensor diagonal
1.55 μm × 1.55 μm pixel size
Output: RAW12/10/8, COMP8
Back focus: Adjustable (12.5 mm–22.4 mm)
Lens standards: C-mount / CS-mount (C-CS adapter included)
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
Compliance:
FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
