Pimoroni GFX HAT LCD Display for Raspberry Pi
SKU: PIM 400
Sale price
€23.50
VAT included
Shipping calculated at checkout

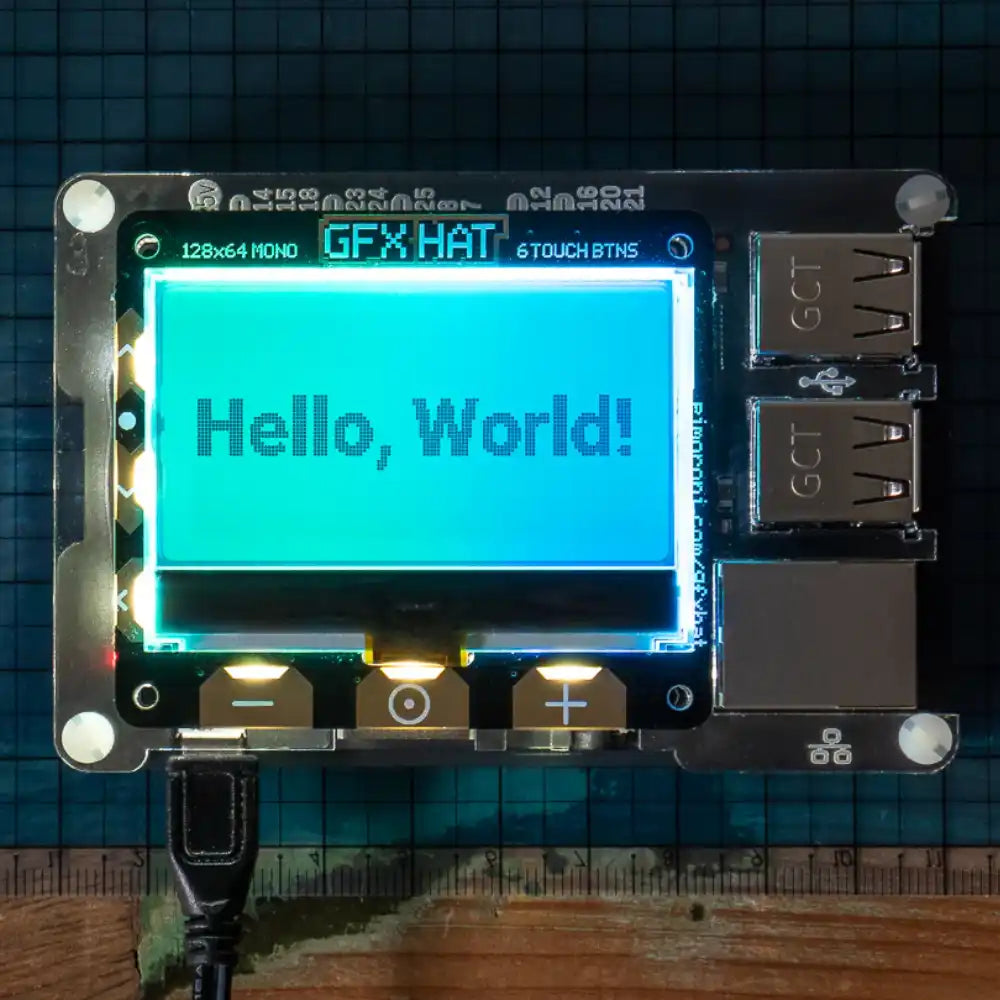

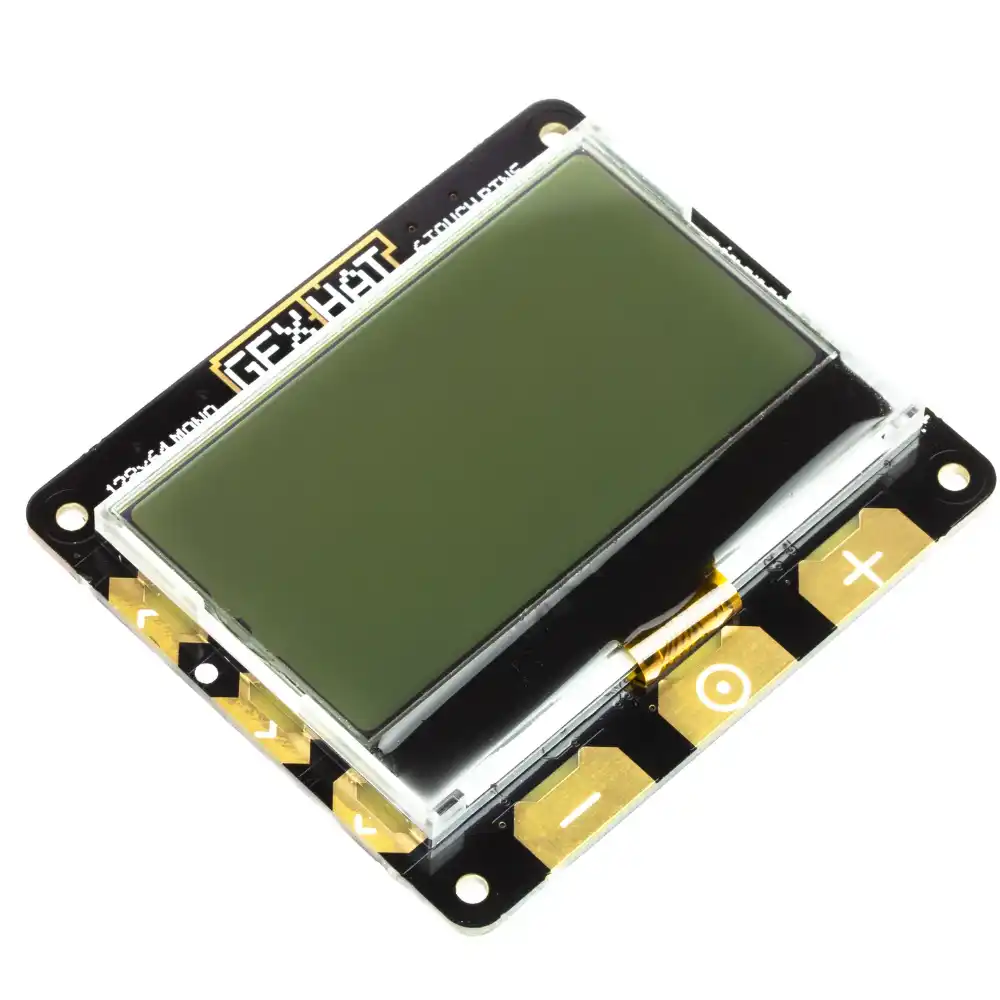

A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.
GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.
Features:128x64 pixel, 2.15" LCD display
Integrated diffuser/reflector assembly
Six-zone RGB LED backlight

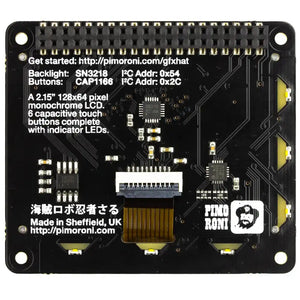

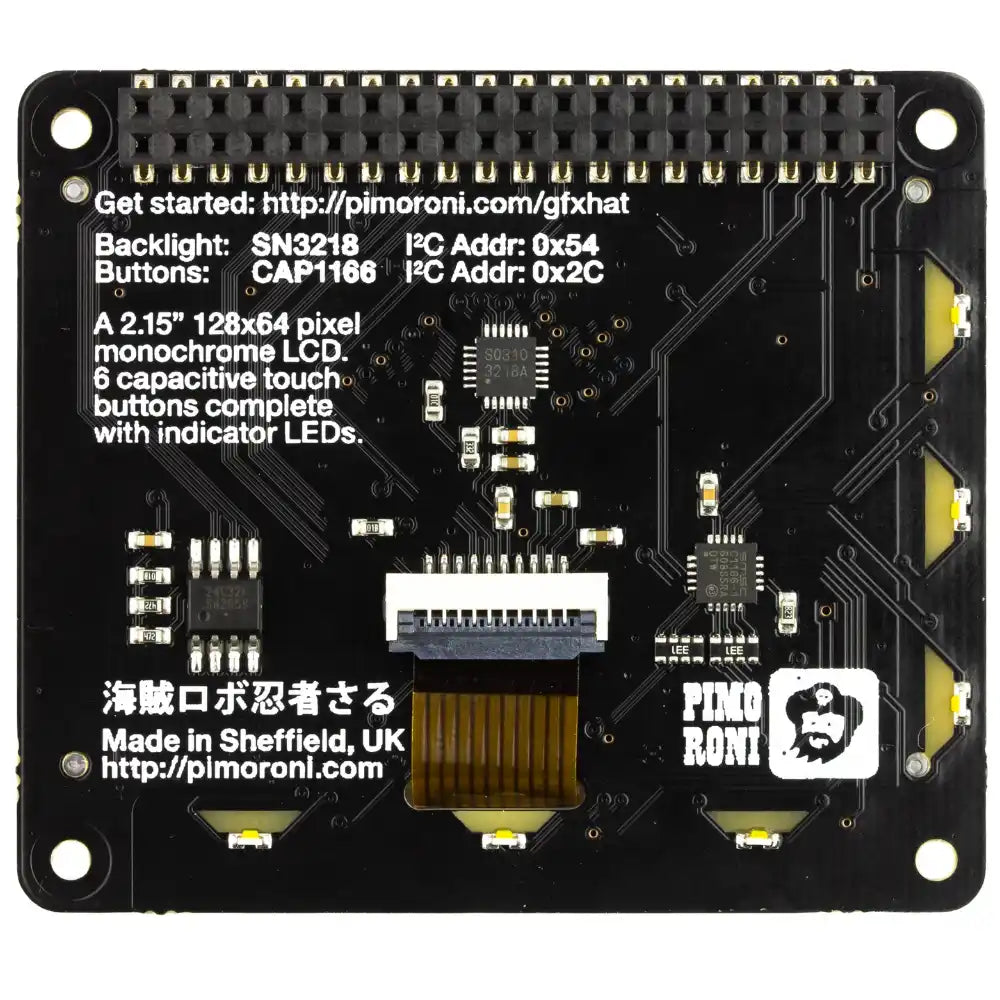

SN3218 LED driver chip (I2C address 0x54)
Six capacitive touch buttons with white LEDs
Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)
Compatible with all 40-pin header Raspberry Pi models
Python library
Comes fully assembled
Compatible with:Raspberry Pi 5
Raspberry Pi 4
GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.
Features:
Compatible with:
Only 3 in stock
More Information
A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.
GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.
Features:128x64 pixel, 2.15" LCD display
Integrated diffuser/reflector assembly
Six-zone RGB LED backlight
SN3218 LED driver chip (I2C address 0x54)
Six capacitive touch buttons with white LEDs
Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)
Compatible with all 40-pin header Raspberry Pi models
Python library
Comes fully assembled
Compatible with:Raspberry Pi 5
Raspberry Pi 4
GFX HAT riffs off the previous Display-O-Tron HAT (now discontinued), but gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.
Features:
Compatible with:
