Kitronik Right Angle Geared Hobby Motor In line Motor
SKU: KI 2547
Sale price
€3.50
Regular price
€3.51
On Sale
VAT included
Shipping calculated at checkout
This 90RPM in-line geared TT hobby motor is a great cost-effective solution for adding some movement to your buggy/robot builds. It can be used with our matching wheels and with our motor driver boards, such as our Motor Driver Board for Raspberry Pi Pico and the Compact Motor Driver Board for the BBC micro:bit, to name just two. Note: when using a microcontroller, do not drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Despite their low price point, these brightly coloured 120:1 motors are quite durable and are likely to last through multiple builds with ease.
Although there is a gearbox between the motor and the shaft, there are no rotary encoders. When connected to an appropriate motor driver, like the two listed above, you get forwards/backwards/stop. Simple yet effective. With 2 motors connected to a motor driver, you can also have directional control by turning off one motor and not the other. As is sometimes the case with servos and motors, there can be some small RPM differences between motors which can be overcome when coding, a little trial end error and the odd pause is usually all it takes.
These hobby motors have an operating voltage of between 3V and 6V, with 4.5V being nominal. This makes them suitable for powering with batteries. At 4.5V, they have a speed of 90RPM no-load and 72RPM at load. Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm. See Datasheet for more information.
Note:When using a microcontroller, do not attempt to drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Features:A cost-effective movement solution for your buggy/robot builds.
Use in conjunction with a microcontroller, motor driver board, and wheels.
A simple yet durable design with a ratio of 120:1.
They are rated for an operating voltage of between 3V and 6v, with 4.5V being nominal.
They can be powered with batteries.
At 4.5V, they have a speed of 90RPM no-load and 72RPM at load.
Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm
Decoratively coloured!
Contents:1 x In-Line Geared TT Hobby Motor.

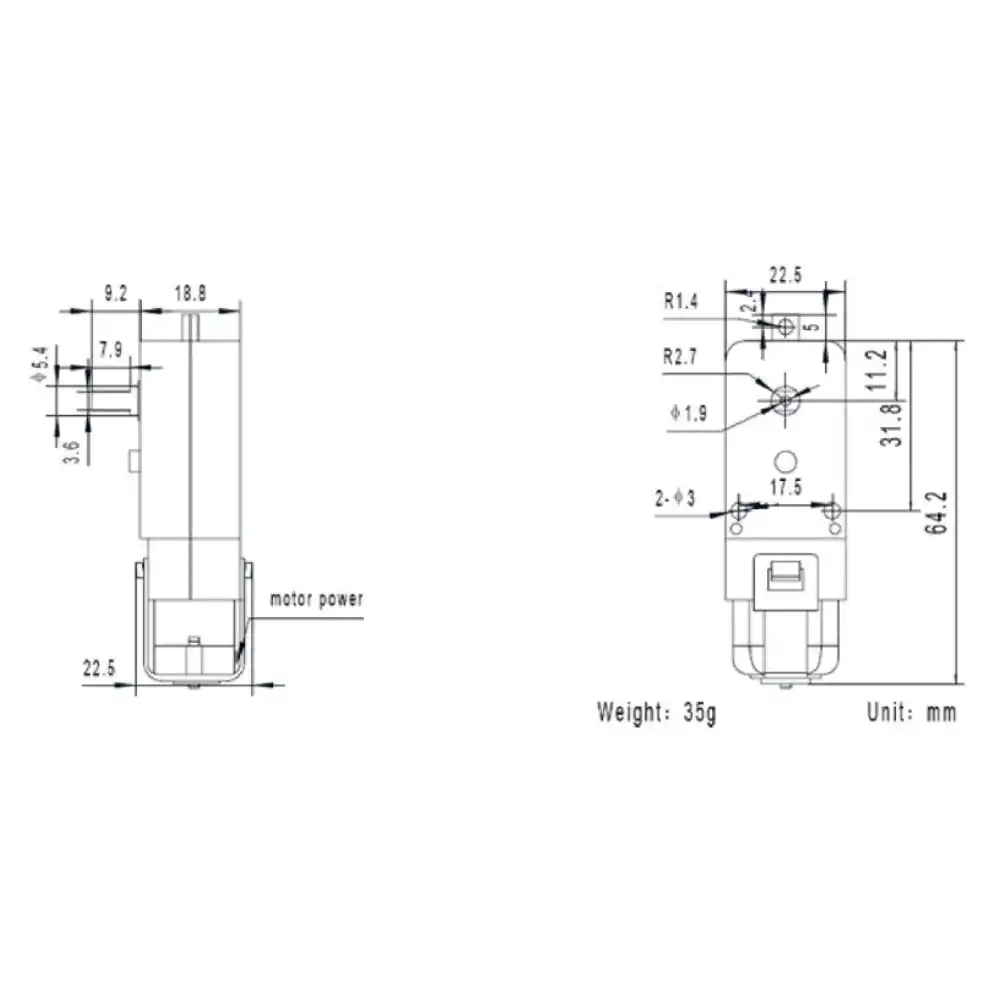

Dimensions:Length: 64.2mm.
Width: 22.5mm.
Height: 18.8mm.
Compatible with:Raspberry Pi Pico
Micro:Bit
Despite their low price point, these brightly coloured 120:1 motors are quite durable and are likely to last through multiple builds with ease.
Although there is a gearbox between the motor and the shaft, there are no rotary encoders. When connected to an appropriate motor driver, like the two listed above, you get forwards/backwards/stop. Simple yet effective. With 2 motors connected to a motor driver, you can also have directional control by turning off one motor and not the other. As is sometimes the case with servos and motors, there can be some small RPM differences between motors which can be overcome when coding, a little trial end error and the odd pause is usually all it takes.
These hobby motors have an operating voltage of between 3V and 6V, with 4.5V being nominal. This makes them suitable for powering with batteries. At 4.5V, they have a speed of 90RPM no-load and 72RPM at load. Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm. See Datasheet for more information.
Note:When using a microcontroller, do not attempt to drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Features:
Contents:
Dimensions:
Compatible with:
282 in stock
More Information
This 90RPM in-line geared TT hobby motor is a great cost-effective solution for adding some movement to your buggy/robot builds. It can be used with our matching wheels and with our motor driver boards, such as our Motor Driver Board for Raspberry Pi Pico and the Compact Motor Driver Board for the BBC micro:bit, to name just two. Note: when using a microcontroller, do not drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Despite their low price point, these brightly coloured 120:1 motors are quite durable and are likely to last through multiple builds with ease.
Although there is a gearbox between the motor and the shaft, there are no rotary encoders. When connected to an appropriate motor driver, like the two listed above, you get forwards/backwards/stop. Simple yet effective. With 2 motors connected to a motor driver, you can also have directional control by turning off one motor and not the other. As is sometimes the case with servos and motors, there can be some small RPM differences between motors which can be overcome when coding, a little trial end error and the odd pause is usually all it takes.
These hobby motors have an operating voltage of between 3V and 6V, with 4.5V being nominal. This makes them suitable for powering with batteries. At 4.5V, they have a speed of 90RPM no-load and 72RPM at load. Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm. See Datasheet for more information.
Note:When using a microcontroller, do not attempt to drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Features:A cost-effective movement solution for your buggy/robot builds.
Use in conjunction with a microcontroller, motor driver board, and wheels.
A simple yet durable design with a ratio of 120:1.
They are rated for an operating voltage of between 3V and 6v, with 4.5V being nominal.
They can be powered with batteries.
At 4.5V, they have a speed of 90RPM no-load and 72RPM at load.
Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm
Decoratively coloured!
Contents:1 x In-Line Geared TT Hobby Motor.
Dimensions:Length: 64.2mm.
Width: 22.5mm.
Height: 18.8mm.
Compatible with:Raspberry Pi Pico
Micro:Bit
Despite their low price point, these brightly coloured 120:1 motors are quite durable and are likely to last through multiple builds with ease.
Although there is a gearbox between the motor and the shaft, there are no rotary encoders. When connected to an appropriate motor driver, like the two listed above, you get forwards/backwards/stop. Simple yet effective. With 2 motors connected to a motor driver, you can also have directional control by turning off one motor and not the other. As is sometimes the case with servos and motors, there can be some small RPM differences between motors which can be overcome when coding, a little trial end error and the odd pause is usually all it takes.
These hobby motors have an operating voltage of between 3V and 6V, with 4.5V being nominal. This makes them suitable for powering with batteries. At 4.5V, they have a speed of 90RPM no-load and 72RPM at load. Torque at the nominal 4.5V is 0.3Kg/cm and they have a stall torque rating of 1.4Kg/cm. See Datasheet for more information.
Note:When using a microcontroller, do not attempt to drive these motors directly with the microcontroller, always use them in conjunction with a motor driver board.
Features:
Contents:
Dimensions:
Compatible with:
