ElecFreaks Powerbit for the BBC micro:bit
VAT included
Shipping calculated at checkout
FEATURES
Only 6 in stock
More Information
DIMENSION
PINS & CONNECTORS

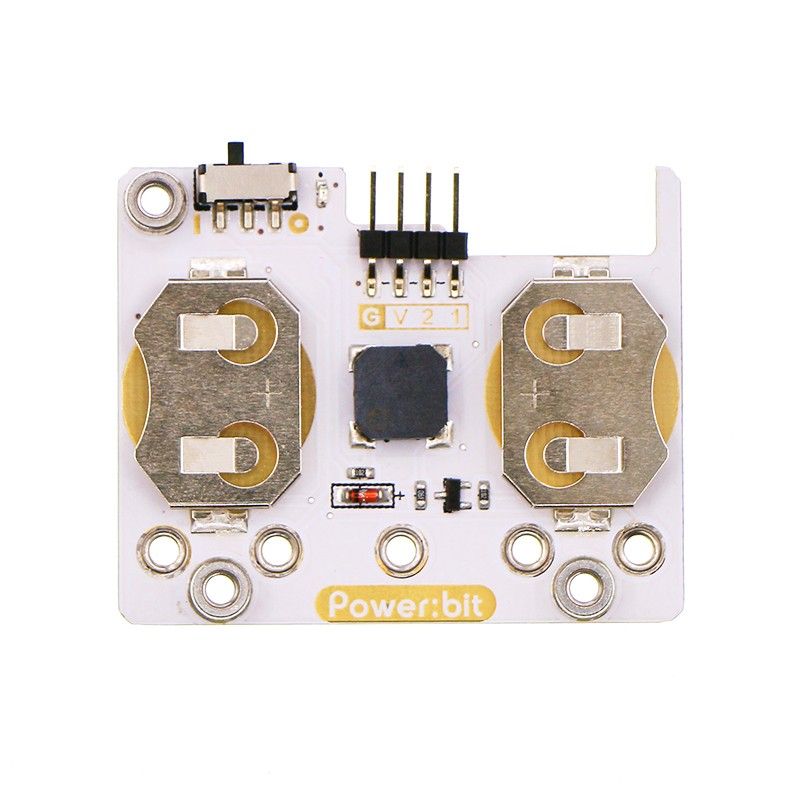

MAJOR COMPONENTS
Power Switch
The end marked I is for power on, and the other marked O is for power off.
1x4 Pin Connector
It can export pins like P1, P2, 3V, and GND. We can use it to do some extensions.
Two CR2025 Battery Sockets
You can place two 2025 batteries（or a 3V button battery）into the socket.
Buzzer
The buzzer is controlled by the P0 port.
HARDWARE CONNECTION
Fix micro:bit onto power:bit with 5 screws. Then place a pair of 3V 2050 batteries into the battery socket of power:bit. When we slide the switch to the end marked I, the whole device is powered on. When we slide the switch to the end marked O, the whole device is powered off.
