ELECFREAKS Octopus:bit Breakout Board for BBC micro:bit
VAT included
Shipping calculated at checkout
FEATURES
APPLICATION It is suitable for all conditions that require micro:bit GPIO such as programming education, smart device creation, and so on.
43 in stock
More Information

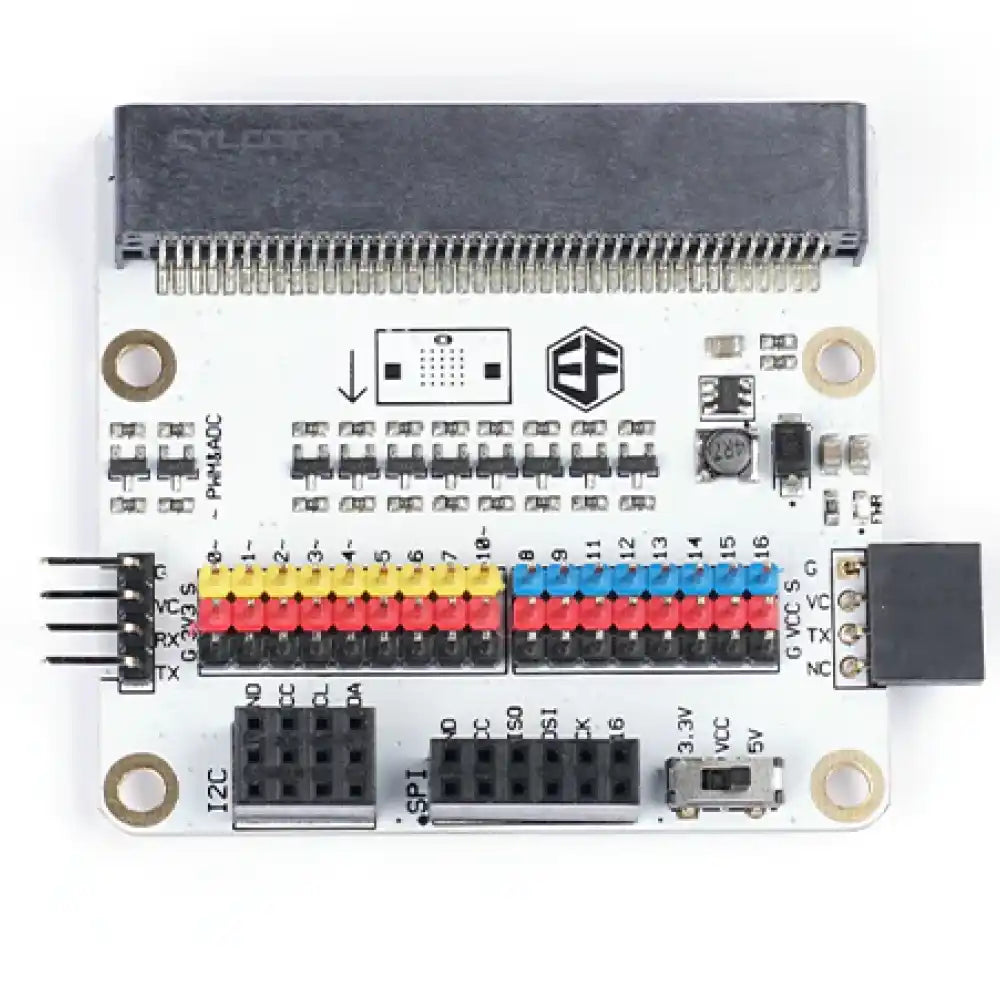

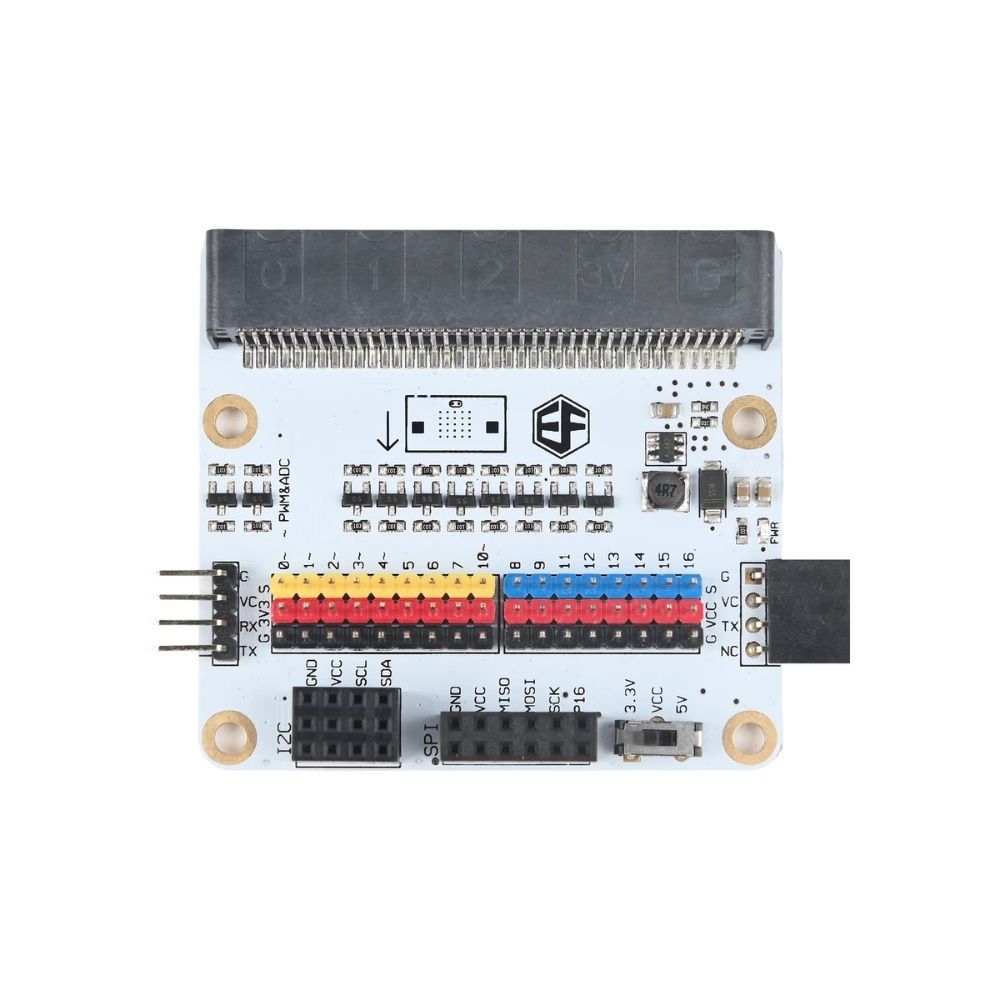

The ELECFREAKS Octopus Breakout Board provides convenient access to the BBC micro:bit’s input and output pins, helping pupils connect external components and explore practical electronics.
Each standard sensor connection includes signal, power and ground pins, arranged in colour-coded rows to simplify wiring. The board is compatible with the ELECFREAKS Octopus sensor range, making it a useful addition to classroom coding projects and STEM activities.
An onboard voltage switch allows selected ports to operate at either 3.3V or 5V, enabling connection to compatible 5V sensors. The board also provides access to serial, I²C and SPI connections for more advanced projects.
Use it to develop sensor-controlled lights, soil moisture monitors and other interactive inventions, combining programming with hands-on experimentation.
Key Features
- Provides access to GPIO pins P0–P16 and P19–P20.
- Colour-coded signal, power and ground connections simplify wiring.
- Compatible with ELECFREAKS Octopus sensors and modules.
- Switchable 3.3V/5V operation on selected ports.
- Supports serial, I²C and SPI communication.
- Powered through the micro edge connector.
- Suitable for classroom electronics, coding and STEM projects.
Application
Waving Fortune Cat
Smart Light
Soil Moisture Detection

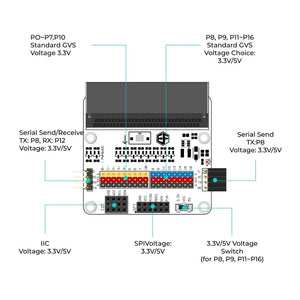

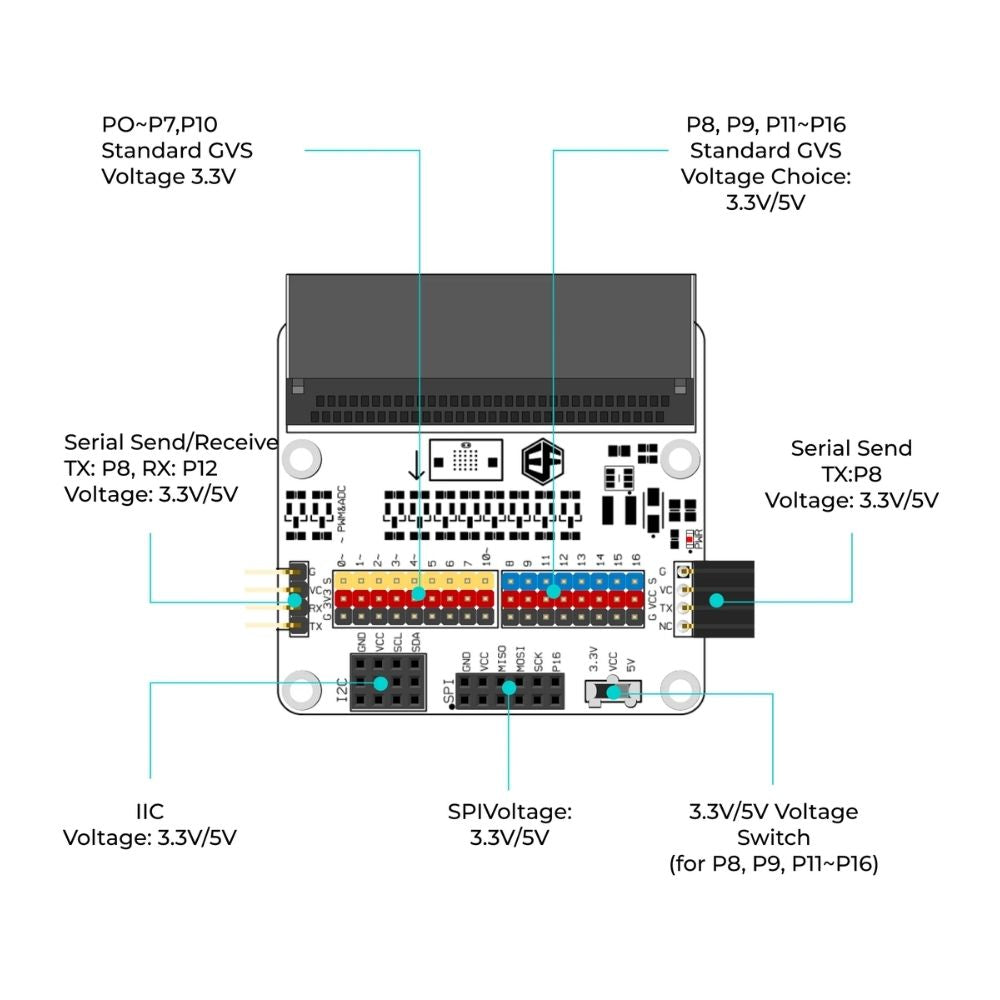

Technical Specifications
| Specification | Details |
|---|---|
| Product model | Octopus |
| Manufacturer code | EF03405 |
| Dimensions | 60 × 62.1 × 11 mm |
| Input voltage | 3.3V |
| Power source | micro:bit edge connector |
| GPIO connections | P0–P16, P19–P20 |
| Switchable voltage ports | P8, P9, P11–P16 |
| Selectable voltage | 3.3V or 5V on selected ports |
| Communication interfaces | Serial, I²C and SPI |
| Sensor connections | Signal, power and ground |
| Supplied with | 1 × Octopus breakout board |
Please note: BBC micro:bit, sensors and peripheral accessories are sold separately.
