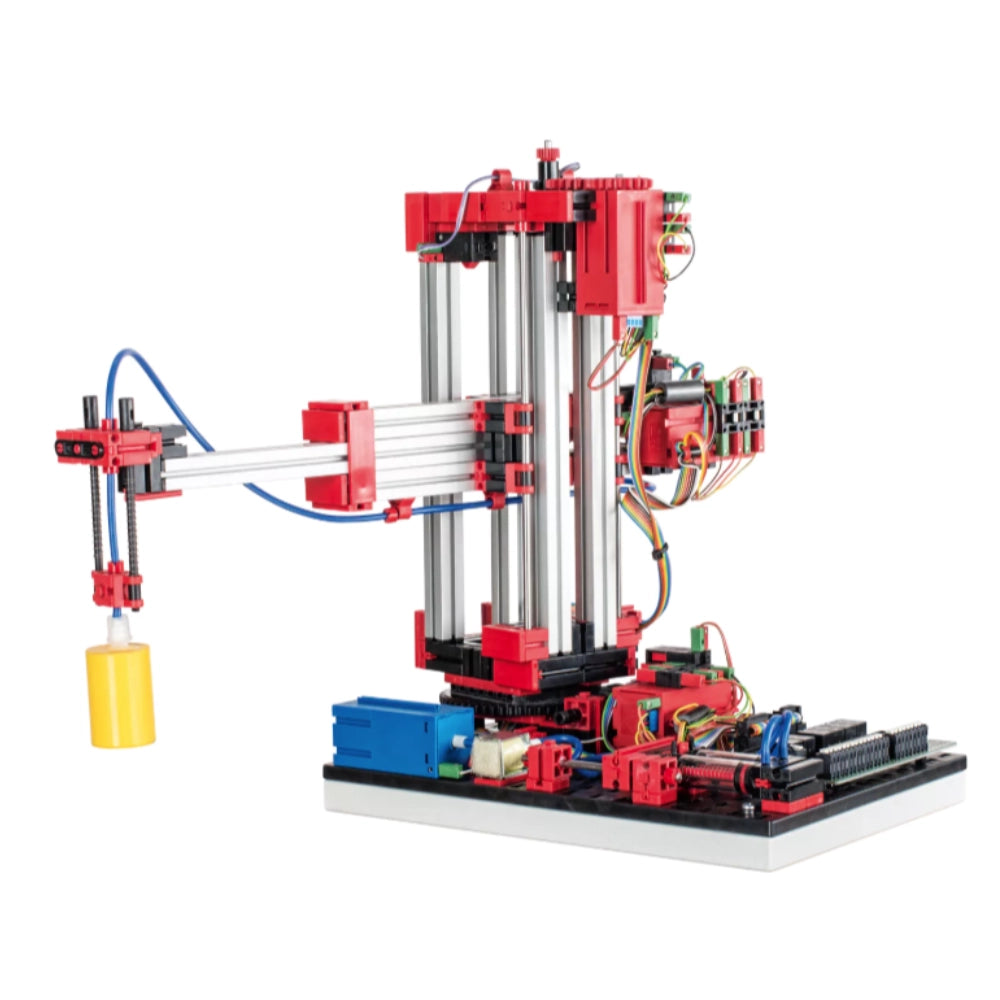

Fischertechnik Vacuum Gripper Robot 24V
VAT included
Shipping calculated at checkout
Out of stock
More Information
Product Description:
The Vacuum Gripper Robot 24V is a three-axis robotic system designed for precise handling and positioning of workpieces in three-dimensional space. This model is ideal for vocational training and industrial automation demonstrations, offering a hands-on approach to understanding robotic motion and control.
Working Range:
- X-Axis (Rotation): 270°
- Y-Axis (Forward/Backward): 140 mm
- Z-Axis (Up/Down): 120 mm
The robot’s vacuum gripper ensures quick and accurate positioning, making it suitable for a variety of industrial training applications.
Control System:
The model is designed for connection to a 24V PLC control system and includes a circuit board with relays for reversing motor directions. Inputs and outputs can be connected via a 26-pin jack plug or series terminals with push-in connectors for flexible and convenient setup.
Specifications:
- Power Requirements: Current consumption: approximately 0.9A
- Digital Inputs: 3
- Fast Counting Inputs: 3 or 6 (with direction detection)
- Outputs: 8 (24V)
Why Choose the Vacuum Gripper Robot 24V?
This pre-assembled and robust training model is an excellent tool for exploring the principles of industrial robotics. With its precise three-axis motion, compatibility with 24V PLC systems, and hands-on learning opportunities, it is a valuable addition to any automation training or simulation program.
Content:
- 3x Encoder motor (DC motor with magnetic encoder)
- 3x Push button (limit switch)
- Vacuum exhauster
- Compressor
- Solenoid valve
