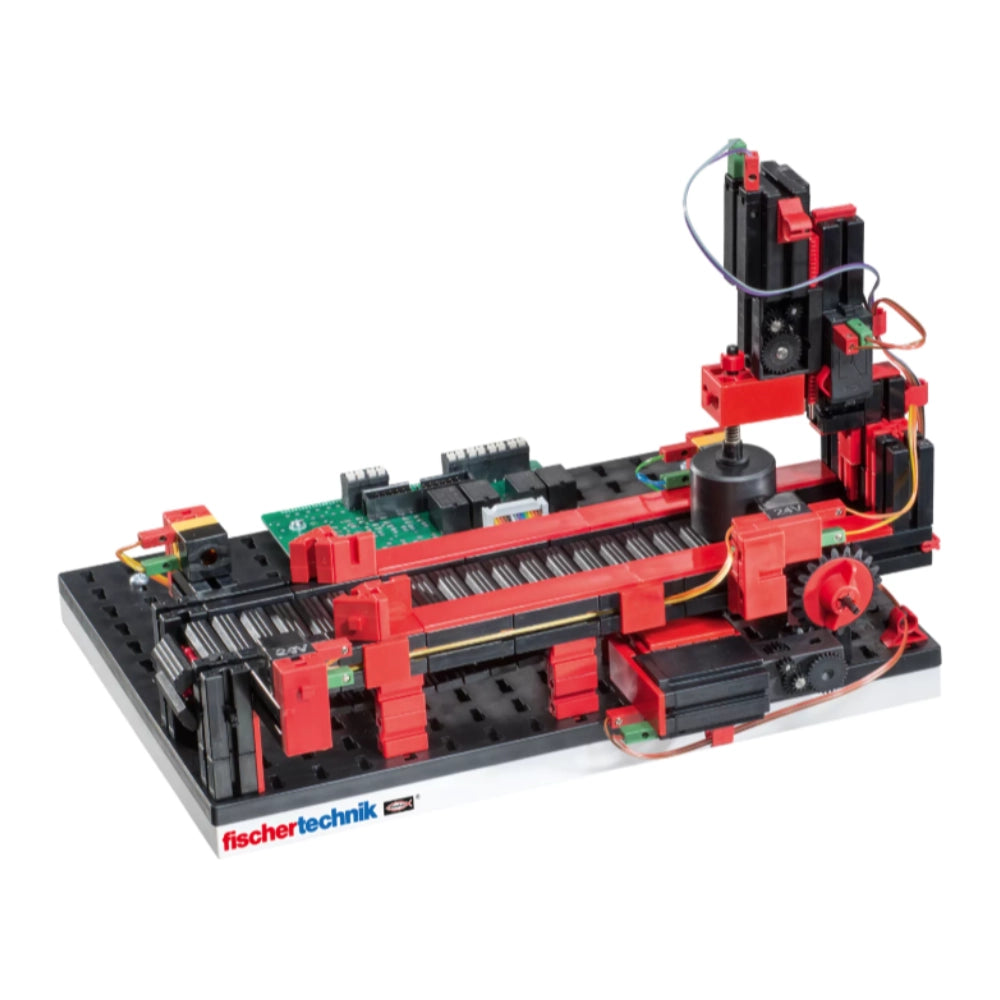

Fischertechnik Punching Machine with Conveyor Belt 24V

Product Description:

The Punching Machine with Conveyor Belt 24V simulates the process of conveying and punching workpieces, offering a realistic and engaging training environment for industrial automation concepts. The integrated conveyor belt ensures efficient material handling, while the punching mechanism demonstrates precise and repeatable operation.

This model is ideal for vocational training and industrial demonstrations, allowing users to explore the integration of multiple automated systems in a hands-on manner.

Control System:
The punching machine is designed for seamless integration with a 24V PLC control system. It includes a circuit board with relays for reversing motor directions, with connections for inputs and outputs via a 26-pin jack plug or series terminals with push-in connectors for flexible setup.

Specifications:

• Digital Inputs: 4
• Outputs: 4 (24V)

Why Choose the Punching Machine with Conveyor Belt 24V?
This pre-assembled and stable training model provides a practical way to understand the conveying and punching processes in industrial automation. Its compatibility with other training models and modular design make it a valuable tool for comprehensive education and simulation in automation workflows.

Content:

• 2x XS motor (DC motor)
• 2x Push button (limit switch)
• 2x Phototransistor
• 2x LED light barrier

Documents for Downloading:

Occupancy plan

Technical Data Sheet Phototransistor

Technical Data Sheet Mini Push-button
