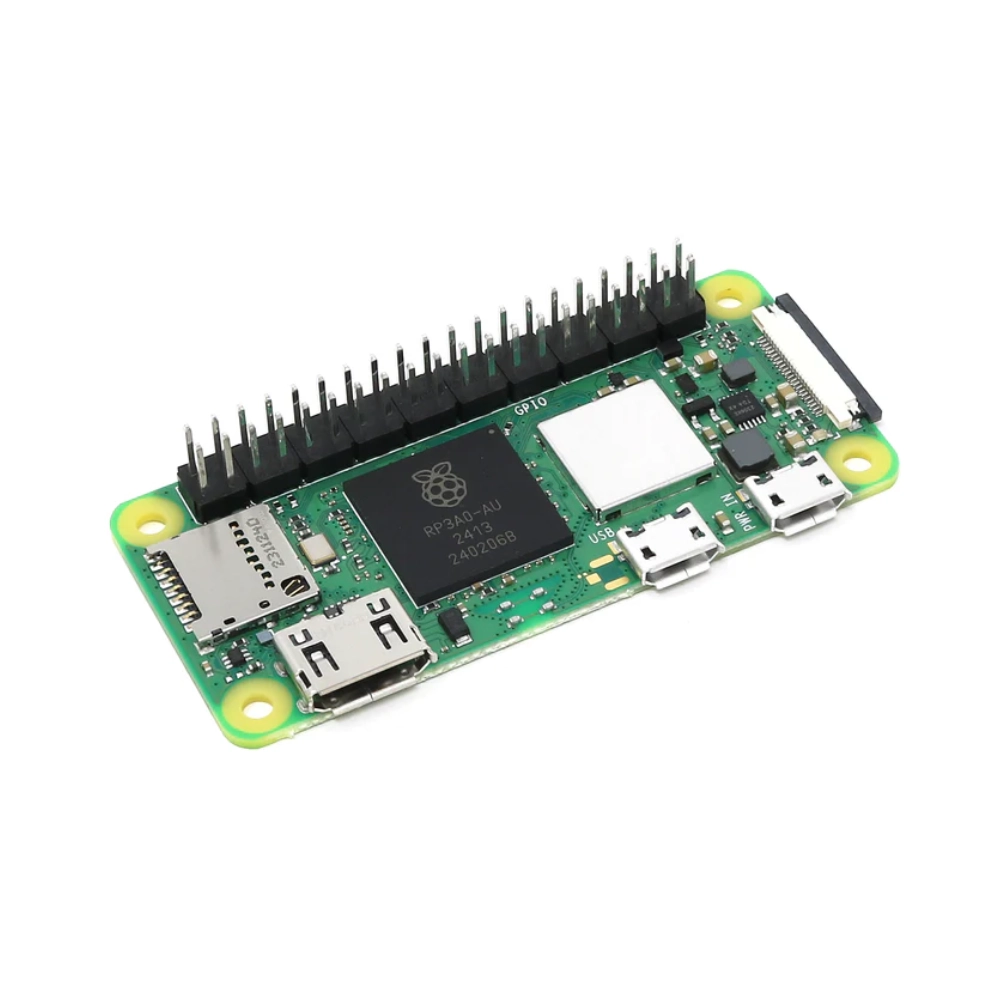

Raspberry Pi Zero 2 W with Header

The Raspberry Pi Zero 2 W is the latest board in the Raspberry Pi Zero family, with a quad-core processor offering a 40% increase in single-threaded performance and 5x times more multi-threaded performance than the previous single-core Raspberry Pi Zero W! The successor to the breakthrough Zero W, Raspberry Pi Zero 2 W is a drop-in replacement for the original board, with the same form factor, connectors and mounting holes. Perfect for a project upgrade!

The Raspberry Pi Zero 2 W incorporates a quad-core 64-bit Arm Cortex-A53 CPU clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. This upgraded package provides the Raspberry Pi Zero 2 W with its generous increase in performance. Raspberry Pi Zero 2 W continues to offer 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth (now 4.2), along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

The new Raspberry Pi Zero 2 has a MicroSD card slot for the Raspberry Pi Operating System, a CSI-2 camera connector, a USB On-The-Go (OTG) port and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Video output is via a mini HDMI port; composite video output is available via the board's test points if needed. The Zero 2 is powered via a micro-USB socket and requires a 5V 2.5A power supply just like previous generations.

Raspberry Pi Zero 2 Essentials
To get your Zero 2 up and running you'll need some minimal essential items to complete your new favourite microcomputer. You may also want to check out our great-value Raspberry Pi Zero 2 Starter Kit which includes everything you need and offers great savings vs buying the parts individually.

MicroSD card - the 'hard drive' for your Raspberry Pi Zero 2. Our 'NOOBS' cards come pre-loaded ready to select your preferred operating system

Mini-HDMI cable - for connecting your Zero's Mini HDMI port to a TV or monitor

Power Supply - the Official Raspberry Pi Zero 2 power supply is the ideal way to power your Raspberry Pi Zero 2

Micro-USB OTG Adapter - connect full-size USB accessories and peripherals to your Raspberry Pi Zero with this handy Micro-USB OTG adapter cable.

The Raspberry Pi Zero W is one of the most compact and cost-effective members of the Raspberry Pi family, yet it’s loaded with essential features like WiFi, Bluetooth, mini-HDMI, a micro-USB port, and a camera connector, making it ideal for a wide range of projects.

This model includes pads for the familiar 40-pin GPIO header found on larger Raspberry Pis. If you need the GPIO header, you can easily solder a 40-pin header (available separately in our essentials kit). The GPIO header allows you to add HATs, pHATs, or connect other components using jumper wires.

Prefer a pre-soldered option? Check out the Raspberry Pi Zero WH, which comes with a pre-soldered header.

The Zero W is powered by a 1GHz BCM2835 processor with 512MB RAM, offering solid performance for a variety of fun and practical projects, even if it doesn’t match the power of the Raspberry Pi 4.

We highly recommend pairing your Zero W with our Zero Essentials Kit, which includes the necessary USB and HDMI adapter cables, along with a variety of GPIO headers, to get the most out of your Raspberry Pi Zero.

Additionally, we offer a range of protective cases to keep your Raspberry Pi Zero safe and stylish.

Raspberry Pi Zero W (Wireless) Specifications:

BCM2835 processor, clocked at 1GHz for a 40% speed boost over the original Pi 1

512MB RAM

Mini HDMI output

USB On-The-Go port

Micro USB for power

HAT-compatible 40-pin GPIO header pads

Composite video and reset headers

CSI camera connector

802.11b/g/n Wireless LAN

Bluetooth 4.1 and Bluetooth Low Energy (BLE)

The Raspberry Pi Zero WH is the most compact member of the Raspberry Pi family, designed to be budget-friendly and versatile enough for a wide range of projects. It now comes with built-in WiFi and Bluetooth, making it easier than ever to connect and control your devices wirelessly.

This WH version features a pre-soldered 40-pin GPIO header, so there's no need for you to solder anything – it's ready to go straight out of the box! The familiar GPIO header allows you to easily attach HATs, pHATs, or simply use jumper wires to connect your project components.

Despite its small size, the Zero WH is packed with essential features, including WiFi, Bluetooth, a mini-HDMI port, a micro-USB port, and a camera connector. Powered by a 1GHz processor (BCM2835) and 512MB of RAM, it may not be as powerful as the Raspberry Pi 4, but it’s more than capable for a wide range of creative and practical projects.

We also offer a variety of cases to keep your Raspberry Pi Zero safe and stylish.

Key Features of the Raspberry Pi Zero WH (with pre-soldered header):

BCM2835 processor, up-clocked to 1GHz for 40% more speed than the original Pi 1

512MB RAM

Mini HDMI output

USB On-The-Go port

Micro USB for power

Pre-soldered 40-pin GPIO header, compatible with HATs

Composite video and reset headers

CSI camera connector

802.11b/g/n Wireless LAN

Bluetooth 4.1 and Bluetooth Low Energy (BLE)

The Raspberry Pi Camera Module 3 is the latest entry in the Official Raspberry Pi range of camera modules, offering a new 12 Megapixel Sony IMX708 image sensor, powered autofocus, improved low-light sensitivity and HDR (High Dynamic Range) support for your Raspberry Pi projects!

The module is capable of 4608x2592 pixel images and 4608x2592 @14 FPS/2304x1296 @56 FPS/1536x864 @120FPS video. When HDR is enabled, the resolution is limited to 2304x1296 @ 30 FPS.

Accessories

The Camera Module 3 is mechanically identical to the previous Camera Module V2 apart from the front sensor section. The new sensor is larger and may not fit all previous camera accessories. We have updated all of our camera accessories with compatibility information in the descriptions.

Software

The Camera Module 3 can only be used with libcamera - the previous raspistill/raspivid libraries will not work

You will need to update Raspberry Pi OS as the Camera Module 3 requires a new driver and a specific version of libcamera

Boards

The Camera Module 3 is compatible with all Raspberry Pi boards with a full-size camera connector (CSI connector)

-- To use this camera with a Raspberry Pi 5 (which has a smaller CSI connector), you will need to use a Raspberry Pi 5 camera adapter cable
-- To use this camera with a Raspberry Pi Zero (which has a smaller CSI connector), you will need to use an adapter cable

Features

Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)

High signal-to-noise ratio (SNR)

Built-in 2D Dynamic Defect Pixel Correction (DPC)

Phase Detection Autofocus (PDAF) for rapid autofocus

QBC Re-mosaic function

HDR mode (up to 3-megapixel output)

CSI-2 serial data output

2-wire serial communication (supports I2C fast mode and fast-mode plus)

2-wire serial control of focus mechanism

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero

The case consists of two parts. It has a standard base featuring a cut-out to allow access to the GPIO, and a choice of three lids: a plain lid, a GPIO lid (allowing access to the GPIO from above), and a camera lid (which, when used with the short camera cable supplied, allows the Raspberry Pi v2 Camera to be fitted neatly inside it).

Kit includes the following:

1 x base

3 x lids (plain, GPIO, camera)

1 x short camera cable

4 x rubber feet

The Raspberry Pi Sense HAT V2 is the perfect product to learn about programming and how we interact with the world around us. With its full array of sensors, the Sense HAT was originally developed for use on the International Space Station, as part of the educational Astro Pi programme run by the Raspberry Pi Foundation in partnership with the European Space Agency.

It is well suited to many projects that require position, motion, orientation, or environmental sensing. The Sense HAT is powered by the Raspberry Pi computer to which it is connected.

An officially supported Python library provides access to all of the on-board sensors, the LED matrix, and the joystick. The Sense HAT is compatible with any Raspberry Pi computer with a 40-pin GPIO header.

Features
The Raspberry Pi Sense HAT V2 is attached on top of the Raspberry Pi via the 40-pin GPIO pins (which provide the data and power interface) to create an ‘Astro Pi’. The Sense HAT has several integrated circuit based sensors can be used for many different types of experiments, applications, and even games.

The sensors enable you to read:

Gyroscope

Accelerometer

Magnetometer

Temperature

Barometric pressure

Humidity

Colour and brightness

The LED Matrix enables you to display the data from the various sensors, it can show you which way is geomagnetic North by programming a compass using the magnetometer or simply be used to play games like Tetris, Pong and Snake with the joystick. The joystick can also be used to enable a human user to interact with the programs running on the Raspberry Pi Sense HAT.

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero

Protect your Pi Zero 2 W in style with the Pibow Zero 2 W case, in calming violet waters - ocean blue, purple, and deep blue! This case fits the Raspberry Pi Zero 2 W only - it is not compatible with the Pi Zero or the original Pi Zero W.

Crafted out of four unique layers including a transparent top and base that leave your beautiful Pi visible inside. Each layer is laser-cut from colourful high-quality cast acrylic and once stacked they securely contain a Raspberry Pi Zero 2 W while leaving the primary ports and GPIO accessible. This case is lightweight and ideal for mounting to any surface. No tools are required for assembly or disassembly!

Features:

Compatible with Raspberry Pi Zero 2 W

Super-slimline profile

Fully HAT/pHAT compatible

Protects your beloved Pi Zero 2 W!

Clear top leaves Raspberry Pi Zero 2 W visible

GPIO cut-out

Leaves ports and GPIO accessible (encloses micro SD)

Slot for camera cable to slip between layers

Made from lightweight high-quality cast acrylic

Great for hacking and tinkering!

The new official Raspberry Pi High Quality Camera module (HQ Camera) for the Raspberry Pi is here - take your Raspberry Pi camera projects up a gear with the 12-megapixel Sony sensor, integrated aluminium tripod mount and interchangeable lens compatibility!

To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!
To use this camera with a Raspberry Pi Zero, you will need to buy this adapter cable!

This camera module will not function without a lens (purchased separately, options below).
High Quality 6mm Wide Camera Lens from Raspberry Pi
High Quality 16mm 10MP Telephoto Camera Lens from Raspberry Pi

The incredible new High Quality (HQ) Camera module from Raspberry Pi offers a higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity than the previous Camera Module v2. It features a Sony IMX477 sensor, a 200mm FPC cable for connection to your Raspberry Pi, a milled aluminium lens mount with integrated 1/4” -20 tripod mount and focus adjustment ring, and a C- to CS-mount adapter. A lens cover is also included with the module and comes pre-fitted. There’s even a small screwdriver in the box for making adjustments. It’s designed to work with interchangeable lenses in both C- and CS-mount form factors giving you ultimate flexibility with your Raspberry Pi camera projects. A C-CS mount adapter comes pre-fitted to the module.

Familiar coding
The High Quality (HQ) Camera uses the same commands as the standard Raspberry Pi Camera Module, such as libcamera (or raspistill/raspivid if you're using Buster or an even older OS image). Libcamera and similar commands will query the camera firmware for the resolution of the sensors (as they already do today) and will default to 12 megapixels for the High Quality Camera. The drivers for the High Quality (HQ) Camera are built-in to Raspberry Pi OS too, so upgrading your camera project with the High Quality Camera is a simple task.

Magnificent for Makers
A huge range of popular projects from time-lapse photography to Raspberry Pi CCTV-style systems can be made double-awesome with the new High Quality Camera module. Shoot in greater detail, with improved low-light performance and take advantage of the range of available lenses to get the perfect shot.

Incredible for Industry
The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras which require the highest levels of visual fidelity and/or integration with specialist optics.

In the box

High Quality (HQ) Camera module with integrated tripod mount (fitted)

Lens cover (fitted)

C-CS lens adaptor (fitted)

200mm ribbon cable (fitted)

Small flat-head screwdriver for adjustments

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero

The new High Quality 6mm Wide Camera Lens from Raspberry Pi is compatible with C or CS-mount lenses.

Please note: Raspberry Pi High Quality Camera not included - available separately here.

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area (do not use the lens adapter with the 6mm lens or everything will be blurry!) The lenses screw directly onto the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumbscrews) for greater flexibility and image refinement. Covers for the front and rear of the lenses are included and come pre-fitted.

Features

Compatible with the Raspberry Pi High Quality Camera

Thumbscrew adjustment

Covers on front and back

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero
