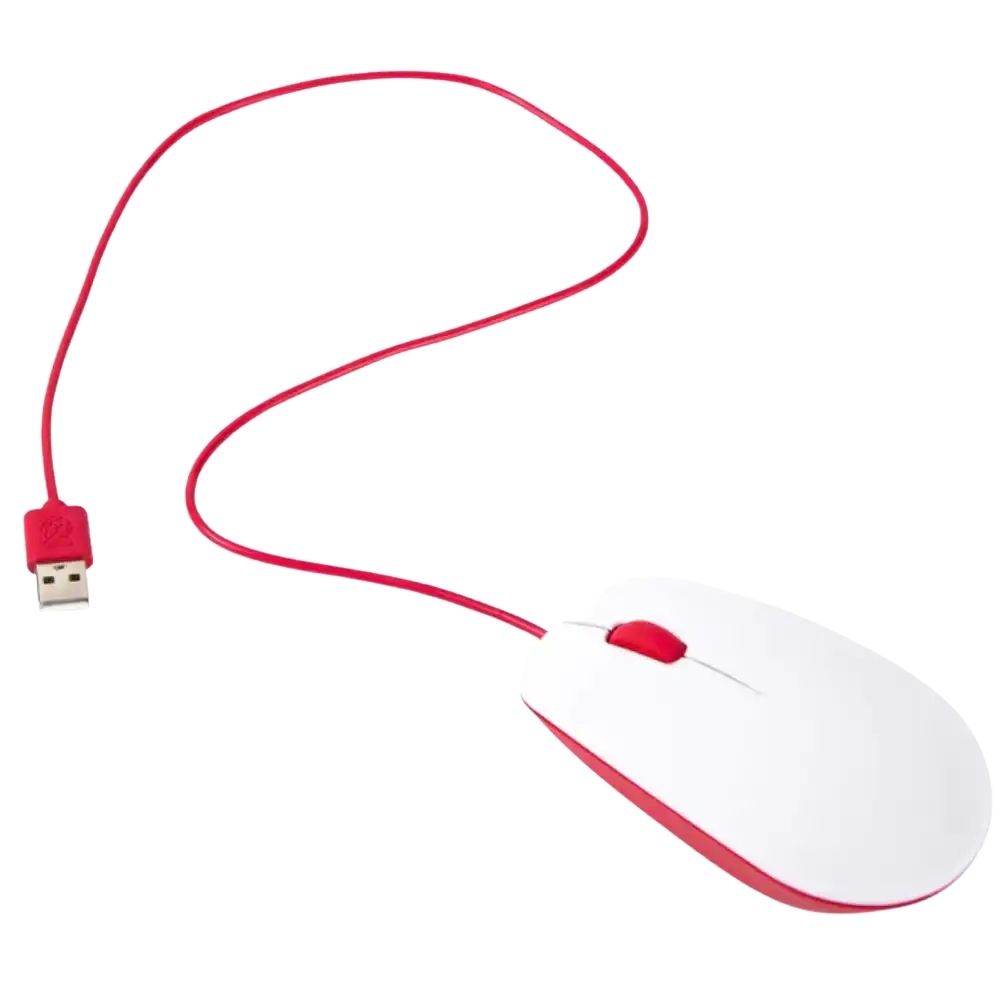

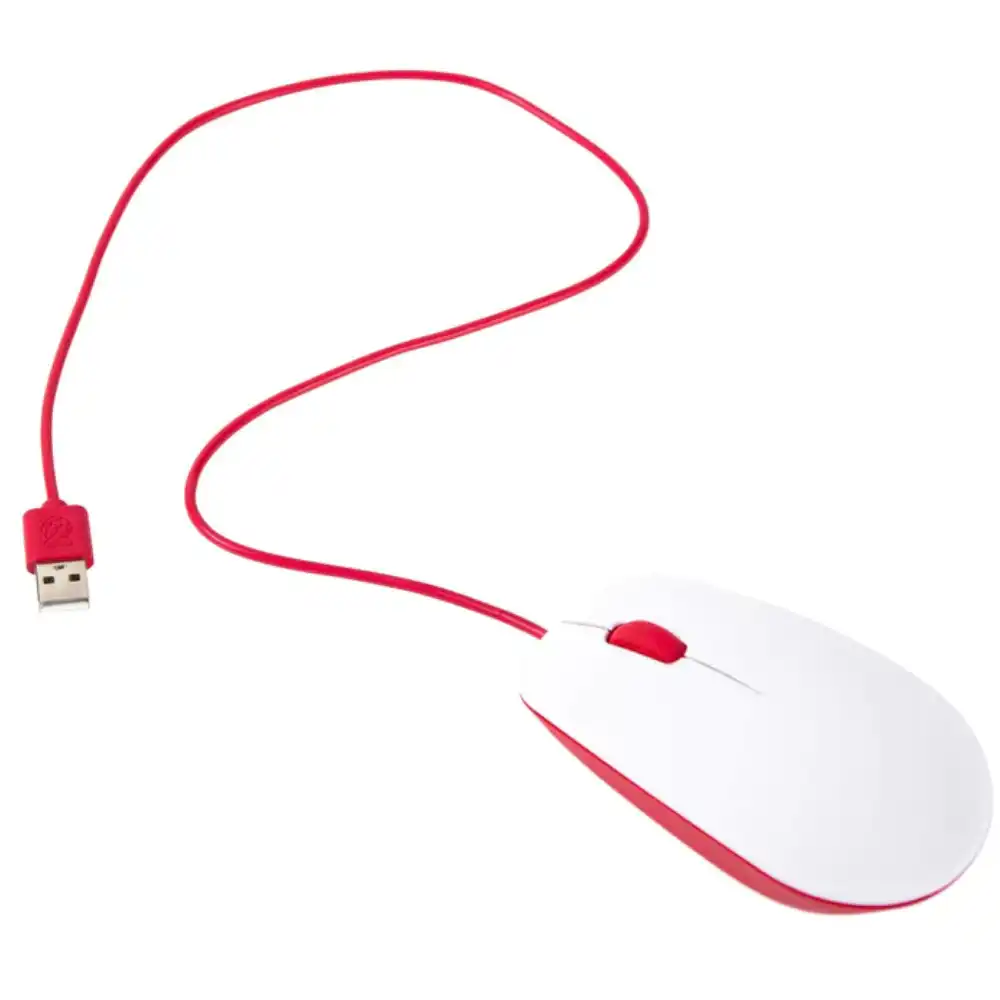

Raspberry Pi Official Mouse Red&White

The Raspberry Piofficial keyboard includes three host USB ports for connecting external devices, such as USB Raspberry Pi mouse, USB drives, and other USB controlled devices. The product’s micro USB port is for connection to the Raspberry Pi. Via the USB hub built into the keyboard, the Raspberry Pi controls, and provides power to, the three USB Type A ports.

Note: If using with a Pi Zero, you'll need a OTG adapter cable.

Keyboard Features: The Raspberry Pi keyboard has three lock keys: Num Lock, Scroll Lock, and Caps Lock. There are three LEDs in the top right-hand corner that indicate which locks are enabled.

Num Lock – Allows use of the red number keys on the letter keys, effectively creating a numeric keypad. This mode is enabled and disabled by pressing the Num Lock key.

Caps Lock – Allows typing capital letters; press the Shift key to type lower-case letters in this mode. This mode is enabled and disabled by pressing the Caps Lock key.

Scroll Lock (ScrLk) – Allows use of the cursor keys for browsing web pages and spreadsheets without the mouse. This mode is enabled and disabled by pressing the ScrLk key while holding the Fn key.

Compatible with:

Raspberry Pi 5

Raspberry Pi 4

Documents:

Raspberry Pi Official Keyboard and Mouse

With the Kitronik Compact Robotics Board, the BBC micro:bit can be used to drive 4 motors (or 2 stepper motors) and 8 servos. Coupled with 17 other I/O expansion points, this means the BBC micro:bit can very easily become the core of a whole variety of robotics projects. The board is small on footprint but big on features and connectivity. Please note, when used with a stepper motor, half-stepping is supported - but not micro-stepping.

The Robotics Board features 2 Dual H Bridge Motor Driver ICs (capable of driving 2 standard motors or 1 stepper motor each) and 8 servo outputs (capable of driving standard and continuous rotation servos), all controlled from the BBC micro:bit using the I2C protocol via a 16 channel driver IC. Kitronik's custom MakeCode blocks make using I2C easy, even for novice users.

The Link header breaks out all the usable pins from the BBC micro:bit, and is designed to allow 2.54mm pitch pin header to be easily soldered into place. The 17 available I/O pins allow other input devices, for example, sensors, or output devices, such as ZIP LEDs, to be added to the board. The I2C communication lines are also broken out (Pins 19 & 20), which means other I2C compatible devices can also be added to the board and controlled by the BBC micro:bit.

Power is provided via either a terminal block or servo style connector. The supply is then controlled by an on/off power switch to the board. There is also a green LED to indicate when the board is turned on. The board then produces a regulated 3.3V supply which is fed into the 3V and GND connections to power the connected BBC micro:bit. This removes the need to power the BBC micro:bit separately. The 3V and GND pins are also broken out on the Link header, which means external devices can also be powered.

To use the compact robotics board, the BBC micro:bit should be inserted firmly into the edge connector, with the LEDs and buttons visible from the front.

Kitronik has produced a set of custom blocks for the MakeCode editor to simplify using the Compact Robotics Board for BBC micro:bit. To add them to the editor, select the cog icon in the top right of the editor. Then, select Extensions from the drop-down menu and in the search bar type and enter Kitronik. Pick the Kitronik robotics Board from the list and the new blocks will be added to the menu in the editor.

Features:

A compact yet feature-packed board designed to sit at the heart of your robotics project.

It can drive 4 motors (or 2 stepper motors) and 8 servos.

The board also has 17 other I/O expansion points.

The link header is designed to allow 2.54mm pitch pin header to be used.

The I2C communication lines are also broken out allowing other I2C compatible devices to be controlled.

This board also features an on/off switch and power status LED.

Power the board via either a terminal block or servo style connector.

The 3V and GND pins are also broken out on the Link header, allowing external devices to be powered.

Code with the Microsoft MakeCode editor with custom blocks by Kitronik or with Python.

When used with a stepper motor, half-stepping is supported - but not micro-stepping.

Contents:

1 x Compact Robotics Board for BBC micro:bit.

Dimensions:

Length: 68mm.

Width: 46.5mm.

Height: 10.6mm.

PCB Thickness: 1.6mm

These are 20cm long jumpers with male connectors on one end and female on the other. Use these to jumper from any male or female header on any board. Multiple jumpers can be installed next to one another on a 0.1" header.

Male to Female connectors

Pack of 40 x M/F Jumpers (four of each colour)

Length: 20cm (approx)

Discover our comprehensive Raspberry Pi 5 starter kit, offering exceptional value. Equipped with the latest generation Raspberry Pi 5 board and all essential accessories, it provides everything you need to kickstart your projects swiftly and seamlessly.

Starter Kit Contents:

Raspberry Pi 5 8GB - Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2-3x increase in CPU performance relative to Raspberry Pi 4! Raspberry Pi 5 also brings with it a huge list of great new features and improvements, making this the best Raspberry Pi yet.

Raspberry Pi 27W USB-C Power Supply - The official recommended power supply for the Raspberry Pi 5. This power supply will provide 5V/5A and enable you to use the board to its full potential and performance, ensuring a full possible current supply to USB devices.

Raspberry Pi 5 Case  - The official case for the Raspberry Pi 5, and a refinement of the previous case design, with a number of improvements and thermal features to accommodate the footprint and peak power consumption of Raspberry Pi 5. Important - remove your SD card before fitting or removing your Raspberry Pi from the case.

SanDisk 32GB MicroSD card - An authentic 32GB Class 10 SanDisk MicroSD card pre-loaded with the latest Raspberry Pi OS

Raspberry Pi MicroSD Adapter - Convert your Micro SD card into a full-sized SD

Micro-HDMI to HDMI cable - A high-speed Micro-HDMI to HDMI cable for connecting your Raspberry Pi 5 to a display, tested for compatibility with the Pi 5.
