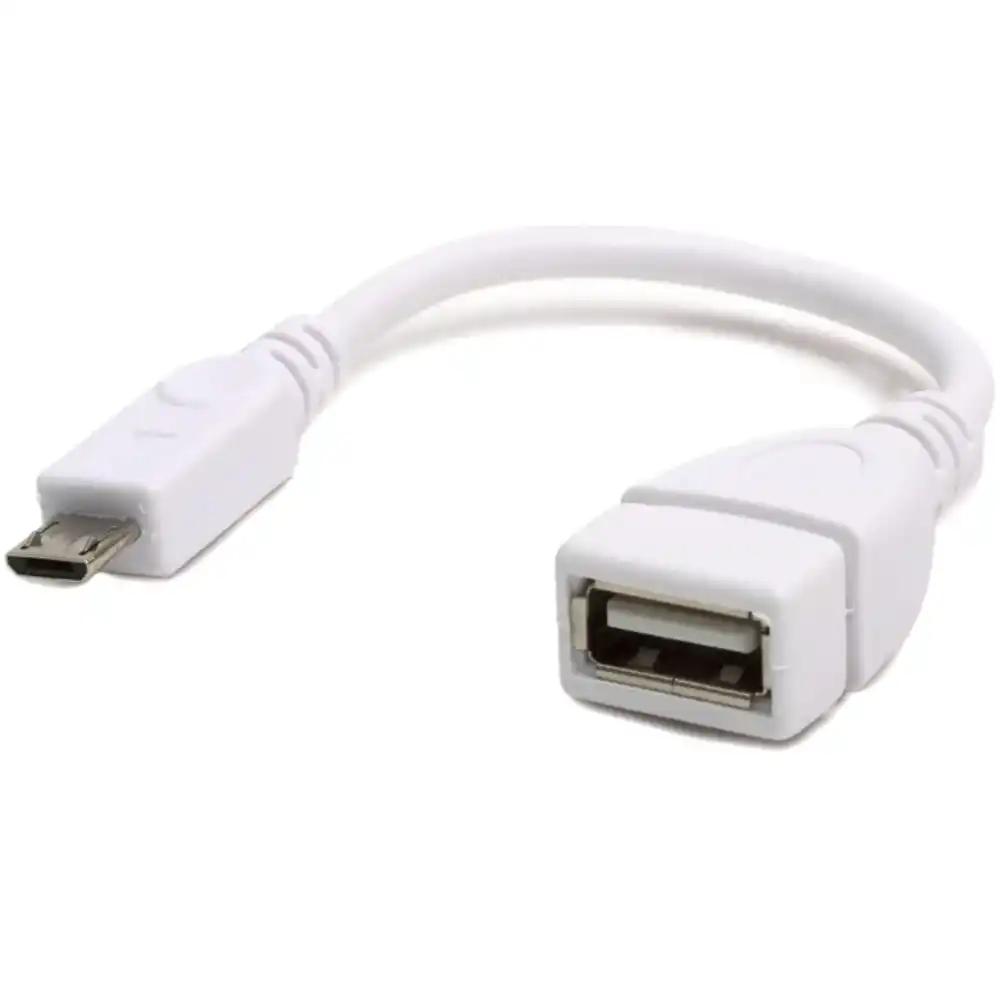

Raspberry Pi Micro-USB OTG Adapter for Pi Zero

Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.



The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification.

The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.

Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

The Raspberry Pi Zero 2 W is the latest addition to the Raspberry Pi Zero family, featuring a quad-core processor that delivers a 40% boost in single-threaded performance and up to 5x more multi-threaded performance compared to the original single-core Raspberry Pi Zero W.

Now available with a pre-soldered GPIO header, including a color-coded version – choose your preferred option before adding it to your cart!

As the successor to the groundbreaking Zero W, the Raspberry Pi Zero 2 W is a seamless drop-in replacement, maintaining the same form factor, connectors, and mounting holes. It's perfect for upgrading your existing projects!

For those starting fresh, we also offer a great-value starter kit that includes everything you need.

The Raspberry Pi Zero 2 W is powered by a quad-core 64-bit Arm Cortex-A53 CPU running at 1GHz, housed in the Raspberry Pi RP3A0 system-in-package (SiP). This SiP integrates a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM, significantly boosting the board's performance.

Continuing the legacy of its predecessor, the Raspberry Pi Zero 2 W features 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth 4.2, and support for Bluetooth Low Energy (BLE), along with modular compliance certification.

Key features include a microSD card slot for the Raspberry Pi Operating System, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Video output is provided via a mini HDMI port, with composite video output accessible through the board's test points if required.

The Zero 2 W is powered through a micro-USB socket, requiring a 5V 2.5A power supply, similar to previous models.

Sharing the same dimensions as the original Raspberry Pi Zero, the Raspberry Pi Zero 2 W fits into most existing Raspberry Pi Zero cases – be sure to check for compatibility markers. Our top pick is the FLIRC Zero case!

The Raspberry Pi Zero W is one of the most compact and cost-effective members of the Raspberry Pi family, yet it’s loaded with essential features like WiFi, Bluetooth, mini-HDMI, a micro-USB port, and a camera connector, making it ideal for a wide range of projects.

This model includes pads for the familiar 40-pin GPIO header found on larger Raspberry Pis. If you need the GPIO header, you can easily solder a 40-pin header (available separately in our essentials kit). The GPIO header allows you to add HATs, pHATs, or connect other components using jumper wires.

Prefer a pre-soldered option? Check out the Raspberry Pi Zero WH, which comes with a pre-soldered header.

The Zero W is powered by a 1GHz BCM2835 processor with 512MB RAM, offering solid performance for a variety of fun and practical projects, even if it doesn’t match the power of the Raspberry Pi 4.

We highly recommend pairing your Zero W with our Zero Essentials Kit, which includes the necessary USB and HDMI adapter cables, along with a variety of GPIO headers, to get the most out of your Raspberry Pi Zero.

Additionally, we offer a range of protective cases to keep your Raspberry Pi Zero safe and stylish.

Raspberry Pi Zero W (Wireless) Specifications:

BCM2835 processor, clocked at 1GHz for a 40% speed boost over the original Pi 1

512MB RAM

Mini HDMI output

USB On-The-Go port

Micro USB for power

HAT-compatible 40-pin GPIO header pads

Composite video and reset headers

CSI camera connector

802.11b/g/n Wireless LAN

Bluetooth 4.1 and Bluetooth Low Energy (BLE)

The Raspberry Pi Zero WH is the most compact member of the Raspberry Pi family, designed to be budget-friendly and versatile enough for a wide range of projects. It now comes with built-in WiFi and Bluetooth, making it easier than ever to connect and control your devices wirelessly.

This WH version features a pre-soldered 40-pin GPIO header, so there's no need for you to solder anything – it's ready to go straight out of the box! The familiar GPIO header allows you to easily attach HATs, pHATs, or simply use jumper wires to connect your project components.

Despite its small size, the Zero WH is packed with essential features, including WiFi, Bluetooth, a mini-HDMI port, a micro-USB port, and a camera connector. Powered by a 1GHz processor (BCM2835) and 512MB of RAM, it may not be as powerful as the Raspberry Pi 4, but it’s more than capable for a wide range of creative and practical projects.

We also offer a variety of cases to keep your Raspberry Pi Zero safe and stylish.

Key Features of the Raspberry Pi Zero WH (with pre-soldered header):

BCM2835 processor, up-clocked to 1GHz for 40% more speed than the original Pi 1

512MB RAM

Mini HDMI output

USB On-The-Go port

Micro USB for power

Pre-soldered 40-pin GPIO header, compatible with HATs

Composite video and reset headers

CSI camera connector

802.11b/g/n Wireless LAN

Bluetooth 4.1 and Bluetooth Low Energy (BLE)

Raspberry Pi Camera Module 3 is a compact camera from Raspberry Pi. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus. Camera Module 3 is available in standard and wide-angle variants, both of which are available with or without an infrared cut filter.

Camera Module 3 can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.

The PCB size and mounting holes remain the same as for Camera Module 2. The Z dimension differs: due to the improved optics, Camera Module 3 is several millimetres taller than Camera Module 2.

Key Features:

Back-illuminated 12-megapixel Sony IMX708 sensor

High signal-to-noise ratio (SNR)

Integrated 2D Dynamic Defect Pixel Correction (DPC)

Fast Phase Detection Autofocus (PDAF)

QBC Re-mosaic function

HDR mode supporting up to 3-megapixel output

CSI-2 data output

I2C fast-mode compatible serial communication

2-wire serial control for focus mechanism

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero

The case consists of two parts. It has a standard base featuring a cut-out to allow access to the GPIO, and a choice of three lids: a plain lid, a GPIO lid (allowing access to the GPIO from above), and a camera lid (which, when used with the short camera cable supplied, allows the Raspberry Pi v2 Camera to be fitted neatly inside it).

Kit includes the following:

1 x base

3 x lids (plain, GPIO, camera)

1 x short camera cable

4 x rubber feet

The Raspberry Pi Sense HAT gives your Raspberry Pi an array of sensing capabilities. The on-board sensors allow you to monitor pressure, humidity, temperature, colour, orientation, and movement. The bright 8x8 RGB LED matrix allows you to visualise data from the sensors, and the five-button joystick lets users interact with your projects.

The Sense HAT was originally developed for use on the International Space Station, as part of the educational Astro Pi programme run by the Raspberry Pi Foundation in partnership with the European Space Agency. It is well suited to many projects that require position, motion, orientation, or environmental sensing. The Sense HAT is powered by the Raspberry Pi computer to which it is connected.

An officially supported Python library gives you easy access to all on-board sensors, the LED matrix, and the joystick. The Sense HAT is compatible with any Raspberry Pi model featuring a 40-pin GPIO header.

The sensors enable you to read:

Gyroscope

Accelerometer

Magnetometer

Temperature

Barometric pressure

Humidity

Colour and brightness

Documents:

Sense HAT Product Brief

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero

Protect your Pi Zero 2 W in style with the Pibow Zero 2 W case, in calming violet waters - ocean blue, purple, and deep blue! This case fits the Raspberry Pi Zero 2 W only - it is not compatible with the Pi Zero or the original Pi Zero W.

Crafted out of four unique layers including a transparent top and base that leave your beautiful Pi visible inside. Each layer is laser-cut from colourful high-quality cast acrylic and once stacked they securely contain a Raspberry Pi Zero 2 W while leaving the primary ports and GPIO accessible. This case is lightweight and ideal for mounting to any surface. No tools are required for assembly or disassembly!

Features:

Compatible with Raspberry Pi Zero 2 W

Super-slimline profile

Fully HAT/pHAT compatible

Protects your beloved Pi Zero 2 W!

Clear top leaves Raspberry Pi Zero 2 W visible

GPIO cut-out

Leaves ports and GPIO accessible (encloses micro SD)

Slot for camera cable to slip between layers

Made from lightweight high-quality cast acrylic

Great for hacking and tinkering!

The new official Raspberry Pi High Quality Camera module (HQ Camera) for the Raspberry Pi is here - take your Raspberry Pi camera projects up a gear with the 12-megapixel Sony sensor, integrated aluminium tripod mount and interchangeable lens compatibility!

To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!
To use this camera with a Raspberry Pi Zero, you will need to buy this adapter cable!

This camera module will not function without a lens (purchased separately, options below).
High Quality 6mm Wide Camera Lens from Raspberry Pi
High Quality 16mm 10MP Telephoto Camera Lens from Raspberry Pi

The incredible new High Quality (HQ) Camera module from Raspberry Pi offers a higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity than the previous Camera Module v2. It features a Sony IMX477 sensor, a 200mm FPC cable for connection to your Raspberry Pi, a milled aluminium lens mount with integrated 1/4” -20 tripod mount and focus adjustment ring, and a C- to CS-mount adapter. A lens cover is also included with the module and comes pre-fitted. There’s even a small screwdriver in the box for making adjustments. It’s designed to work with interchangeable lenses in both C- and CS-mount form factors giving you ultimate flexibility with your Raspberry Pi camera projects. A C-CS mount adapter comes pre-fitted to the module.

Familiar coding
The High Quality (HQ) Camera uses the same commands as the standard Raspberry Pi Camera Module, such as libcamera (or raspistill/raspivid if you're using Buster or an even older OS image). Libcamera and similar commands will query the camera firmware for the resolution of the sensors (as they already do today) and will default to 12 megapixels for the High Quality Camera. The drivers for the High Quality (HQ) Camera are built-in to Raspberry Pi OS too, so upgrading your camera project with the High Quality Camera is a simple task.

Magnificent for Makers
A huge range of popular projects from time-lapse photography to Raspberry Pi CCTV-style systems can be made double-awesome with the new High Quality Camera module. Shoot in greater detail, with improved low-light performance and take advantage of the range of available lenses to get the perfect shot.

Incredible for Industry
The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras which require the highest levels of visual fidelity and/or integration with specialist optics.

In the box

High Quality (HQ) Camera module with integrated tripod mount (fitted)

Lens cover (fitted)

C-CS lens adaptor (fitted)

200mm ribbon cable (fitted)

Small flat-head screwdriver for adjustments

Compatible with:

Raspberry Pi 4

Raspberry Pi 5

Raspberry Pi Zero
