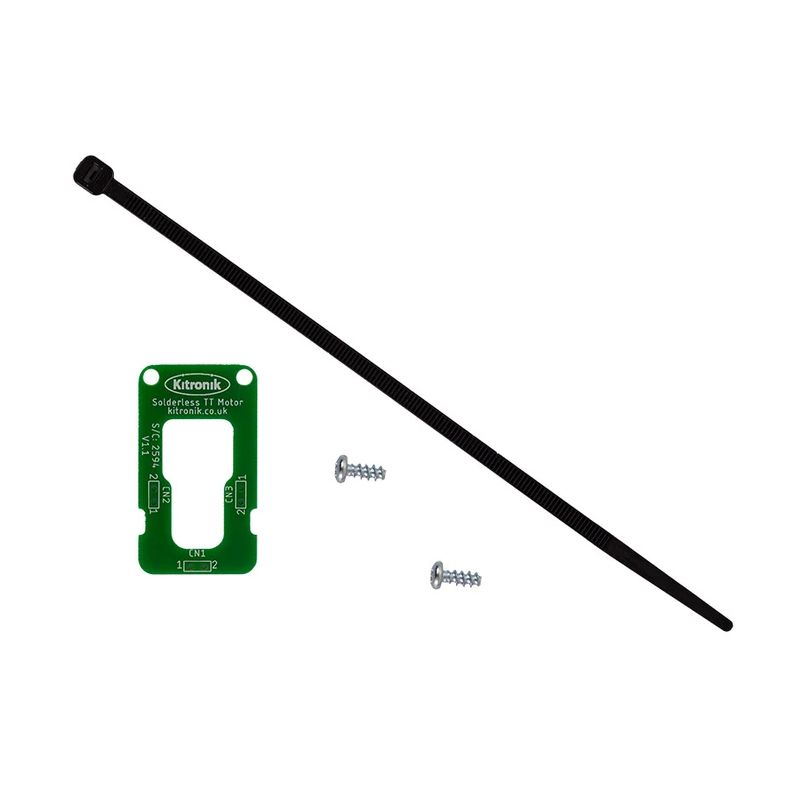

Kitronik Solderless TT Motor Adapter Board

White Solderless Prototype PCB Board Breadboard 400 Tie-points 83mmx55mm

This learn to solder pack is the ideal low cost solution for teaching soldering in the classroom/after school club. The pack provides all of the parts and PCB's required for a class size of 25 and also includes a 9V battery for testing purposes. Each pack comprises; 25 x PCBs, 100 x 100 ohm resistors, 25 x LED's, and a 9V PP3 battery.

There is also a step by step guide to soldering, which covers; equipment, solder, tinning & cleaning, soldering in 8 steps, de-soldering in five steps, wire preparation, examples of good and bad solder joints, basic PCB repair, resistor information, LED information, full step by step build information for the kit, and how the learn to solder kit works. This guide covers everything that you might need to discuss with students and can form the basis of your lesson plan.

Using the kits and the step by step guide, each student will solder four resistors and one LED to their PCB before pressing it to the terminals of the 9V battery to check that their board works. Using the guides they will be able to examine their own work and troubleshoot problems. The battery pads on the PCBs have been shaped inline with the battery terminals on a PP3 battery making it straightforward to see which way around it should be placed on the battery.

Features:

Purpose built PCBs that can be tested, once built, with the supplied 9V PP3 battery.

Low cost classroom pack for 25 students.

Easy build kit.

Full teaching resources and step by step guides available for this kit below.

Contents:

100 x 100 ohm Resistors.

25 x Red 5mm Diffused LED - 275mCd.

25 x Learn To Solder PCBs.

1 x 9V Zinc Chloride PP3 Battery.

Dimensions:

Built Height: 11mm.

PCB Length: 31mm.

PCB Width: 21mm.

PCB Height: 1.5mm.

Requires:

Soldering Iron.

Solder.

Wire Cutters.

This is a through-hole version of the popular SparkFun Electronics Simon Says kit. The kit lets you make your own Simon Says game, where you have to copy a pattern that gets more and more difficult until you fail to copy it correctly. This version comes with an ATmega328 processor that is pre-programmed with the Simon Says code (the source code is provided below if you want to re-write it!). All components are through-hole, making this kit great for beginners. When building this kit, you'll have a chance to solder a 28-pin microprocessor, LEDs, battery clips and more.

After you have successfully assembled the kit, you will have a greater knowledge of through-hole soldering and the tools, techniques, and terminology required to populate your own PCB prototype. You will have a development platform with 5 outputs (LEDs and buzzer), 5 inputs (buttons), and serial for debugging. And, of course, you'll have your very own Simon game! Checkout the great assembly instructions. The kit even includes batteries! Assembly time varies, but for a true beginner with no soldering experience, the kit can take 20-40 minutes to assemble.

Kit Includes:

1x ATmega328 - pre-programmed with Simon firmware

1x Buzzer

2x 0.1μF Cap

1x 10K Resistor

4x LEDs (blue, yellow, red, green)

2x Slide Switch

4x Battery Clips

2x AA Batteries

1x Button pad

1x Bezel

4x Standoffs and screws

1x Assembly instructions.

Note: This ATmega328 comes pre-programmed with the Simon code as well as the STK500 serial bootloader. This serial bootloader will allow you to re-program the Simon game using the Arduino development environment if you want to change the code for your own. There is not direct support under the Arduino IDE but the 'LilyPad Arduino w/ ATmega328' should allow you to reprogram the board using Arduino. You will need a serial to USB converter such as the Breakout Board for FT232RL USB to Serial to program the reprogram the board from the Arduino environment.

500g reel of Rosin-free Leaded Solder Wire (60% Tin / 40% Lead). This solder wire incorporates flux.

Note:This product contains Lead. Due to REACH legislation sales are restricted to professional users only.

Features:

60% Tin / 40% Lead composition.

Incorporates flux.

0.7mm solder wire diameter (22SWG).

Contents:

1 x 500g Reel of Rosin Free Solder Wire.

Requires:

Soldering Iron.

100g reel of Lead free solder (99.9% tin and copper). This solder incorporates flux.

Features:

Tin 99% / Copper 0.9% composition.

Incorporates flux.

0.7mm solder wire diameter (22SWG).

Contents:

1 x 100g Reel of Lead-Free Solder Wire, Tin.
