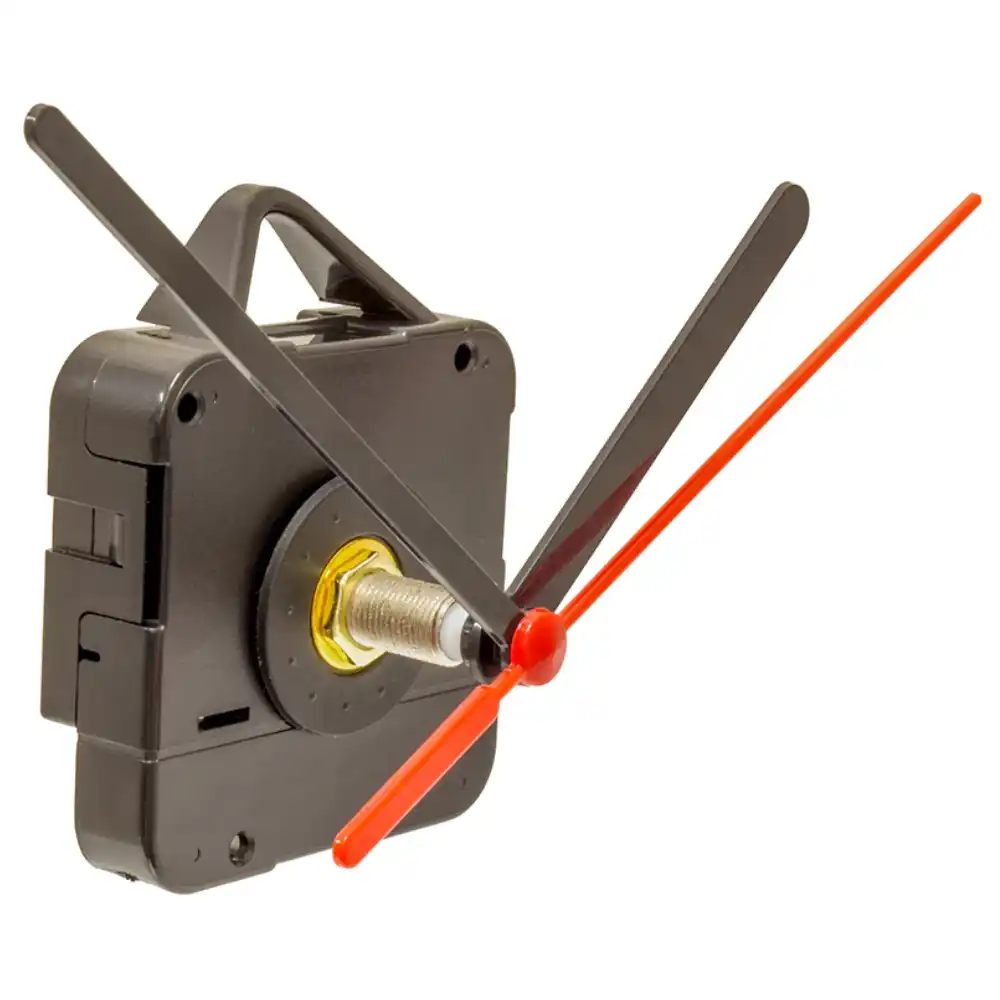

Kitronik Quartz Clock Movement

Small hand is 8cm, long hand is 11cm, second-hand is 12cm. Clock box is 5.5 x 5.5 x 1.5cm.

You can easily mount the clockwork on a decorative plate, but the screw shaft determines how thick a plate you can mount it on. The screw shaft requires that the plate has a hole of 8 mm diameter, which you can make using a drill. Place the black ring and the selected plate on top of the clockwork so that the screw shaft protrudes through to the front of the plate. Then add the metal ring and nut and screw them to the top of the plate. Finally, fasten the hands onto the clock one by one and insert an AA battery into the clock.

Explore time, light, and also sound with the Kitronik Alarm Clock Kit, a fun and hands-on introduction to the ZIP Halo HD.

Kitronik Alarm Clock Kit: The Kitronik Alarm Clock Kit with ZIP Halo HD for microbit provides a fun introduction to features of Halo HD. This kit features a modified version of Halo HD, all of the parts required to build the clock, and also power accessories. We have included an easy-to-follow tutorial book which will guide you through building your clock. Additionally, there are online tutorials within MakeCode. The modified version of Halo HD changes are as follows; power is now provided via a 2.1mm barrel jack connection and there is also a coin cell holder fitted to the rear of the board. When a 1220 coin cell battery is inserted, it will then provide power to the RTC chip when no power is being supplied to Halo HD.

ZIP Halo HD : The Kitronik Halo HD board for the BBC micro:bit incorporates 60 individually addressable full-colour ZIP LEDs. It also breaks out P1/P2 to a standard 0.1” footprint, it features a MEMS mic for detection of sound, and a buzzer to play sound. It also features an onboard real-time clock (RTC). The board has M3 mounting holes for a more sturdy project. Kitronik has created custom blocks for the ZIP Halo HD for use with MakeCode. To add these blocks; Under the “Advanced” section click on “Extensions”. In the next window search for “Halo HD”. Then, click on the tile to import it into MakeCode. You will see that the blocks are split across three categories; ZIP LEDs, Microphone and Clock. For those requiring more of a challenge, the Alarm Clock Kit kit can also be coded with MicroPython.

The ZIP Halo HD supplied with this kit is powered via a 2.1mm Barrel jack connection. The kit is supplied with a 3 x AA Battery Cage with Lead and 2.1mm DC jack. The adapter cable is for use with a separate power supply (not included). A regulated supply is produced on the board to power the connected BBC micro:bit. Halo HD has also been fitted with an ON/OFF switch, switch it off when not in use and the onboard coin cell will keep the memory of the RTC chip alive.

NOTE:Ensure that when using a power supply that it is rated for at least 1A and 5V.

Kitronik Alarm Clock Kit Features:

Learn how to create & then code exciting projects that explore time, light & sound.

The kit is backed up by a range of fun tutorials that introduce you to the exciting features of the Alarm Clock Kit.

All of the tutorials and resources are free.

No soldering required and mechanical assembly is super simple.

The board features CR1220 3V coin cell battery holder that acts as a clock battery backup for the RTC chip when a battery is inserted.

The backup battery can last for up to 2 years. Experiences may vary from battery to battery and also from situation to situation.

ZIP Halo HD for microbit Features:

The board features 60 individually addressable full-colour ZIP LEDs.

P1 and P2 are broken out to a standard 0.1” footprint.

It includes a MEMS microphone and a piezo buzzer.

It has an onboard Real-time clock (RTC)).

The On/off switch helps you maximise battery life, CR1220 3V coin cell will then protect the RTCs memory.

Code it with MakeCode using Kitronik custom blocks.

It can also be coded with MicroPython.

M3 Mounting holes, for more secure projects.

Contents:

1 x Kitronik Halo HD for BBC micro:bit.

4 x 8mm M3 machine screws.

1 x Set of laser cut Perspex stand parts.

1 x CR1220 3V coin cell battery.

2 x Plastic spacers.

3 x AA Battery Cage with Lead and 2.1mm DC jack

A USB-B to 2.1mm jack cable, rated for 5V, 1.5A.

Getting started booklet.

A plastic reusable shipping and storage container.

Dimensions:

ZIP Halo HD Diameter: 87mm.

M3 Mounting Holes Spacing (Center to Center): 68.4mm.

These high precision Quartz Clock Mechanisms are great if you want to make your own clock or for replacing faulty clock mechanisms and come with all required fixing hardware and hour, minute and second hands. They are accurate to within 30 seconds per month and run from one AA Battery which lasts over a year. The time is easily set or adjusted with the dial on the back of the unit.

Popular uses include recycling old CDs and laser cutting custom designs from Perspex or plywood to make into clocks, but if you're after a more complete kit you can try our clock making kit, or assemble your own kit from our range of accessories.

Features:

Quality quartz clock movement.

Includes hands and fixings.

Energy-efficient.

Accurate timekeeping.

Contents:

1 x Quartz clock mechanism.

1 x Second hand.

1 x Minute hand.

1 x Hour hand.

1 x Washer.

1 x Fixing nut.

Dimensions:

Width: 54mm

Height: 54mm

Depth: 14mm
