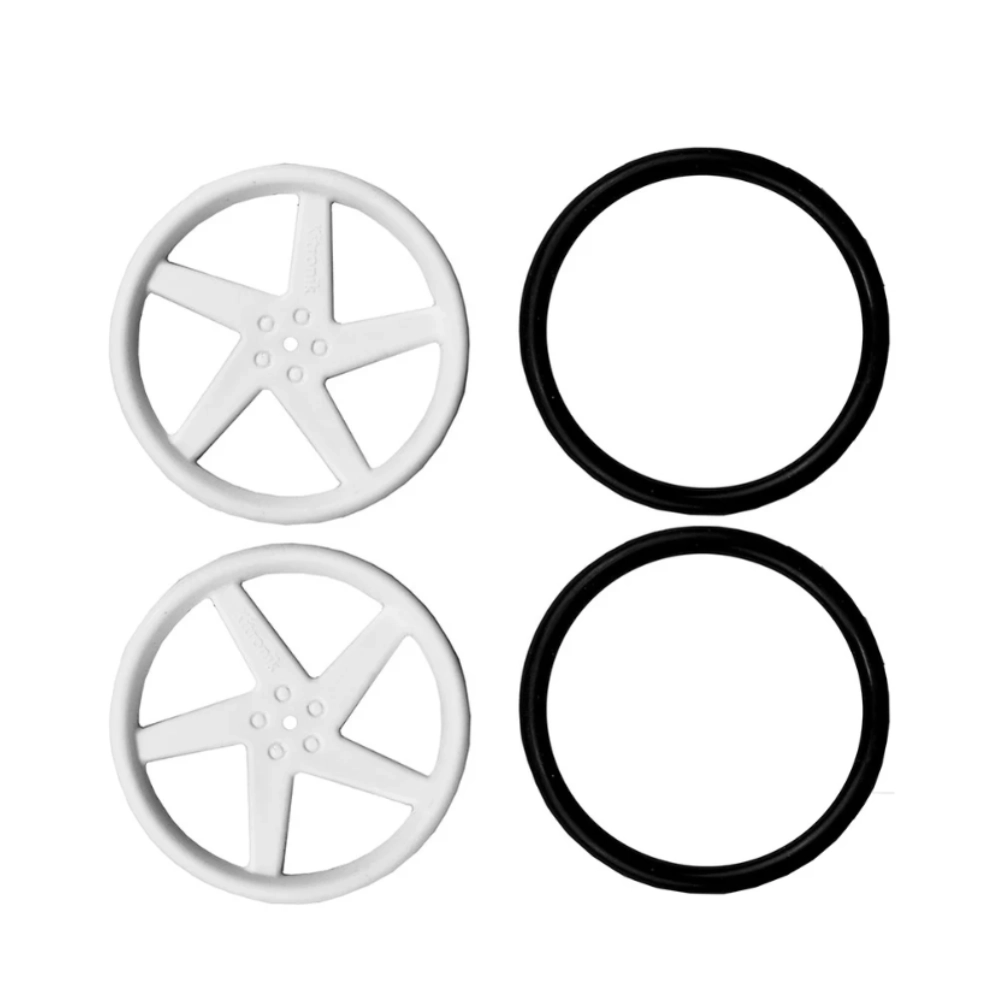

Kitronik Pair of 5 spoke wheels for Servo Motor- White

This wheel is designed to 'push fit' on to our matching geared hobby motor. They have a solid plastic wheel rim and rubber tread tyre. They are perfect for creating your own buggy design.

Features:

Solid plastic wheel rim.

Rubber tread tyre.

Compatible with our geared hobby motor.

Contents:

1 x Wheel for Geared Hobby Motor.

Dimensions:

Overall diameter: 68mm.

Wheel diameter: 51.8mm.

Tyre width: 27mm (30mm including push fit connector).

Shaft outside diameter: 13.8mm.

Width of mounting hole: 3.66mm.

Length of mounting hole: 5.3mm.

Build up to six projects straight out of the box with this great value SG Education Project Kit for the BBC micro:bit. The perfect way to get started with programming and hardware interaction. No soldering required, all parts are included to build 6 projects. Small prototype breadboard and 2 x AAA Batteries are included.

Included in the kit are:
BBC Micro:Bit
Mini Breadboard
Shielded Croc Leads
USB to mini USB cable
Red-Green-Amber LED's
Battery cage
AAA batteries included

The projects that can be built are:
Dice
Theremin
Miniature Steady Hand Game
Fruit Keyboard
Traffic Light

This is a micro servo It only weights 20g and provides a 1.6kg.com torque. It will comes with a 3-pin control cable and mounting hardware.

Almost all the micro bit servo in the market have to be driven by 5V, but the normal working voltage for micro:bit is 3V. It is embarrassing to drive a 5V servo with a micro:bit. Thus, we have customized these two servos that can be driven by two batteries with the lowest working voltage at 2.7V. It is the first batch of the micro bit servo designed for the micro:bit in the market.

The high linearity makes its control more accurate. It is designed for micro:bit with high-linearity, which gives you a smooth feel of control.

Low working voltage, compatible to 3V-5.5V(With 2.7V at least), designed for micro:bit.

Kitronik's new clippable servo has had the standard pin header replaced with super useful crocodile clips. This allows it to be used in projects that feature other clippable connection points, such as projects utilising the Kitronik Klip Motor Driver.

The 180 degree rotation servo is based on the Feetech FS90MG-CL and features metal gears, which are more reliable and hard-wearing than their plastic counterparts. The servo is rated to operate between 4.8V - 6V, which gives output Torque of between 1.8kg - 2.2kg respectively. If the clippable servo is being used in micro:bit projects, a separate power supply is required. If you are using the Kitronik Klip Motor Driver, the power can be taken directly from the Klip motor driver board.

The servo can rotate approx. 180 degrees, or approx. 90 in each direction, and it can be driven with any standard 180 degree servo code/libraries. It can be coded using the MakeCode or Python editors which makes it ideal for novice or expert level microbit projects.

The servos are supplied with four horns and the associated fixings which should allow you to slot these servos into your projects with relative ease and without the need to make custom horns.

Note: This servo requires a separate power supply from the controlling micro:bit. Attempting to power this servo directly from the micro:bit is likely to cause permanent damage to the micro:bit.

Features:

The clippable servo has had the standard pin header replaced with super useful crocodile clips.

Small and compact yet high power output, 1.8kg of Torque at 4.8V and 2.2kg at 6V.

Metal gears for strength and durability.

It can be coded using the MakeCode or Python editors

Suitable for RC models and Robotics projects.

180 degrees of rotation, 90 in each direction.

Operating Voltage of 4.8V - 6V.

It can be used with Kitronik clippable micro:bit accessories, such as the Kitronik Klip Motor Driver.

Contents:

1 x Kitronik Clippable Servo with 4 horns and fixings.

Dimensions:

For Servo dimensions, please see the Technical Drawing.

Lead Length: 250mm.

Clip Length: 34mm.

Take your robotics project to the next level with the Kitronik compact 16 servo driver board for the BBC micro:bit. This board allows up to 16 Remote Control (RC) servos to be driven simultaneously. It is based on the PCA9685 driver IC.

The board includes an integrated Edge Connector for the BBC micro:bit . Expansion Pads allow the connection of this board with other compatible micro:bit accessory boards using the “Link” pluggable pin header.

Power is provided via either a terminal block or servo style connector. The supply is then controlled by an on/off power switch to the board. There is also a green LED to indicate when the board is turned on. The board then produces a regulated 3.3V supply which is fed into the 3V and GND connections to power the connected BBC micro:bit. This removes the need to power the BBC micro:bit separately. The 3V and GND pins are also broken out on the Link header, which means external devices can also be powered.

Kitronik has produced a set of custom blocks for the MakeCode editor to simplify using the Compact 16 servo control board for BBC micro:bit. To add them to the editor, select the cog icon in the top right of the editor. Then, select Extensions from the drop-down menu and in the search bar type and enter Kitronik. Pick the Kitronik I2C-16-servo tile from the list and the new blocks will be added to the menu in the editor.

Features:

Drive up to 16 servo motors.

Servos take power directly from the board power supply.

Standard 0.1" pitch servo connectors.

Link Standard compatible.

This board also features an on/off switch and power status LED.

Includes fitted Edge Connector for the BBC micro:bit to slot into.

Power the board via either a terminal block or servo style connector.

The 3V and GND pins are also broken out on the Link header, allowing external devices to be powered.

Code with the Microsoft MakeCode editor with custom blocks by Kitronik or with Python.

Contents:

1 x Compact 16 Servo Driver Board for the BBC micro:bit.

Dimensions:

Length: 68mm.

Width: 46.5mm.

Height: 10.6mm.

PCB Thickness: 1.6mm.
