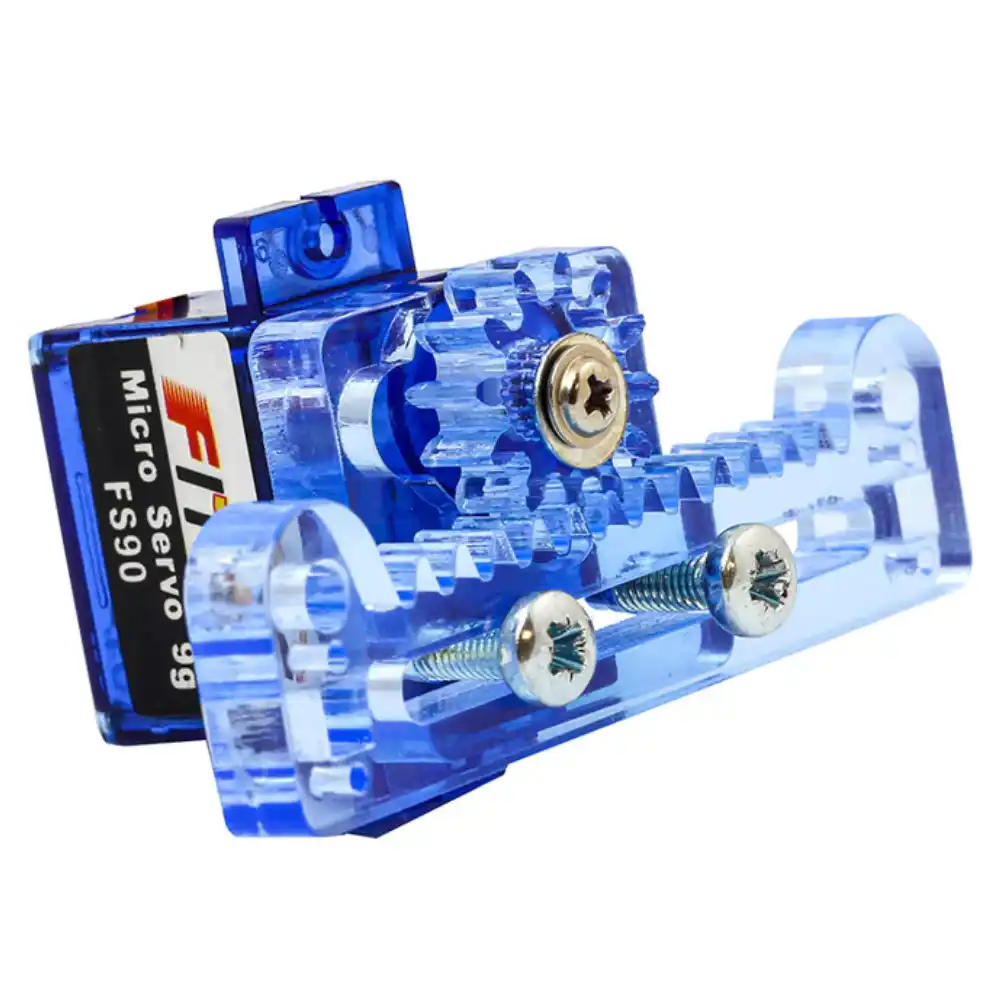

    Kitronik Linear Actuator Kit

    Manufacturer: Kitronik
    Be the first to review this product
    Kitronik's Linear Actuator converts the circular movement of a 180° servo (supplied) into motion in a straight line, one way and then the other. It can be mounted to a project to provide either horizontal or vertical movement.

    Linear Actuators are useful for a whole host of different applications, like; robots, automated button switching, steering racks for buggies, a point switcher on a model railway, animating a diorama display, etc. Linear actuators are also used extensively in industry and in consumer products, such as; valves, cams, floppy disk drives and optical disk drives, just to name a few.

    The Linear Actuator has been cut from a 5mm clear blue Perspex Sheet, the same material as used in our servo powered Klaw gripper. There are a range of mounting holes at either end of the rack including a 3mm hole, a 3mm square, and standard servo horn holes suitable for wire (1mm dia) and it has approximately 20mm of travel. It has a gear ratio of 2:3 and the stall torque of the provided servo is 1.5kg/cm at 6V and 1.3kg at 4.8V.

    Features:
  • The Linear Actuator converts the circular movement of a 180 degree servo (supplied) into motion in a straight line.
  • It is supplied with a 180 degree FS90 servo and fixings.
  • Useful for a wide range of applications, such as; robotics, switching, animating displays and more.
  • Use with boards such as microbit, Arduino, or RaspberryPi.
  • It can be used with a number of microbit accessory boards, such as;
    -- Servo:Lite board for :MOVE mini.;
    -- Kitronik 16 Servo Driver Board for the BBC micro:bit.;
    -- All-in-one Robotics Board for BBC micro:bit.
    • ;
    Contents:
  • Linear Actuator Laser Cut Parts.
  • 1 x Micro 180 Degree Servo and fixings.
  • 2 x M3x 10 Pozi PanSteel M/C.
  • 1 x M3 Form A Steel Washer.
  • Linear Actuator assembly Instructions.
    • ;
    SKU: KI 2595
    Availability: 201 in stock
    €10.95
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Product Resources / Datasheet

    Assembly Instructions.pdf_icon.gif

    Products specifications
    MICRO:BIT
    Device TypeCables, Switches & Motors
    *
    *
    *
