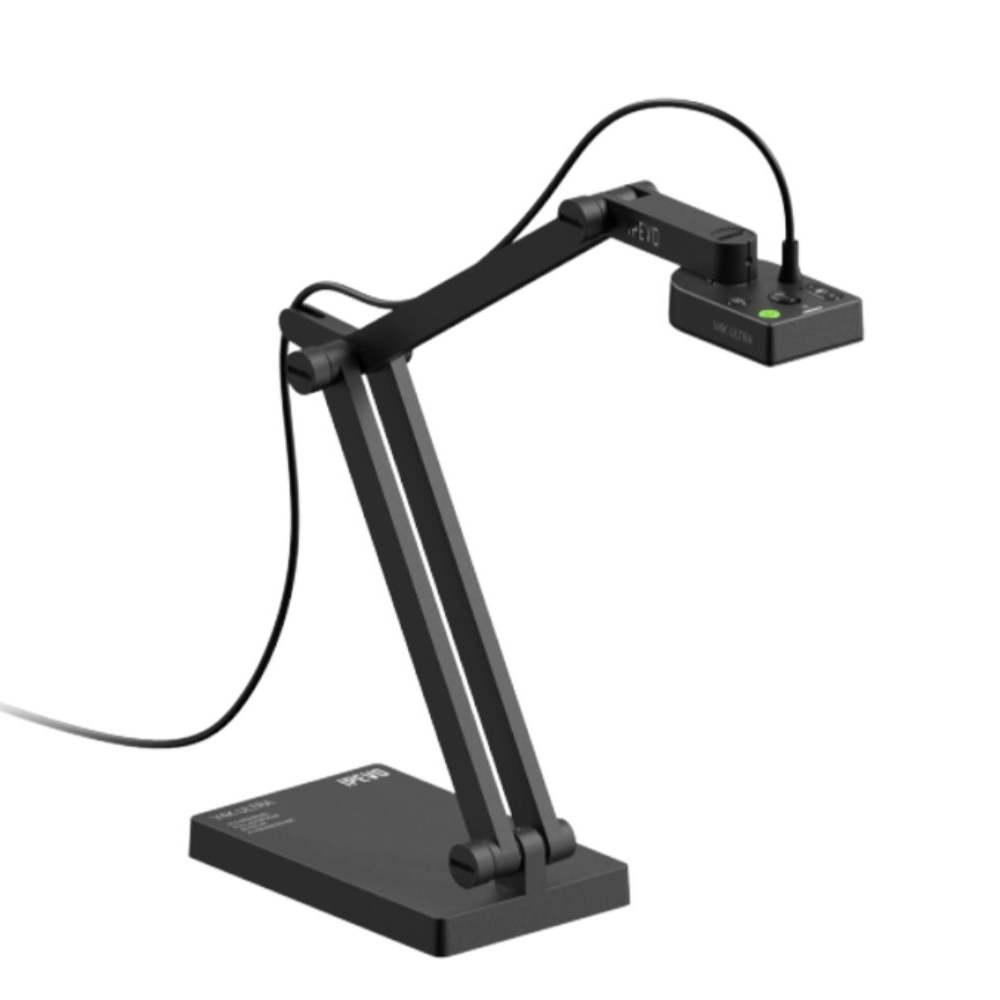

IPEVO V4K Ultra USB Visualiser SpecificationsIPEVO V4K Ultra USB Visualiser Specifications
Size & Weight
Dimensions (Folded): 277mm x 78mm x 48mm (10.91" x 3.07" x 1.89")
Weight: 581g (1.28 lbs)
Model & Color
Model: CDVU-18IP
Color: Black
Camera
Sensor: 1/3.06" CMOS
Maximum Resolution: 3840 x 3104
Lens Type: Auto Focus
Focal Length: 3.46mm
Aperture: f/2.2
Iris Type: Fixed
Field of View (FOV): DFOV 77°
Zoom: 20x (via Visualizer software)
Microphone
Type: Omni-directional
Audio Compression: PCM
Pickup Range: 30–70cm
Signal-to-Noise Ratio (SNR): 64dB(A)
Frequency Range: 8K–44.1K
Video
Video Compression: MJPG, YUV
Maximum Frame Rate:
- 3840 x 3104p @ 15fps
- 3840 x 2160p @ 30fps
- 1920 x 1080p @ 60fps
- Default: 1920 x 1080p @ 30fps
Power
Power Input: DC 5V / 0.5A (USB-A connector)
Power Consumption: 5V / 0.35A
Environmental Requirements
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -10°C to 50°C (14°F to 122°F)
Humidity: 10% to 95%
Connectivity
USB Interface: USB-A (UVC/UVA)
Compatibility
Windows: Windows 8 and above (Standard UVC)
Mac: macOS 10.13 and above
Chrome OS & Chrome OS Flex: Latest version
Android: Version 11 and above
Package Contents
- V4K Ultra Visualiser
- Quick Start Guide
- Warranty: 3 years from the date of purchase
Sustainability
The IPEVO V4K Ultra complies with the Waste Electrical and Electronic Equipment (WEEE) Directive and is designed, manufactured, and disposed of in an environmentally responsible manner.
