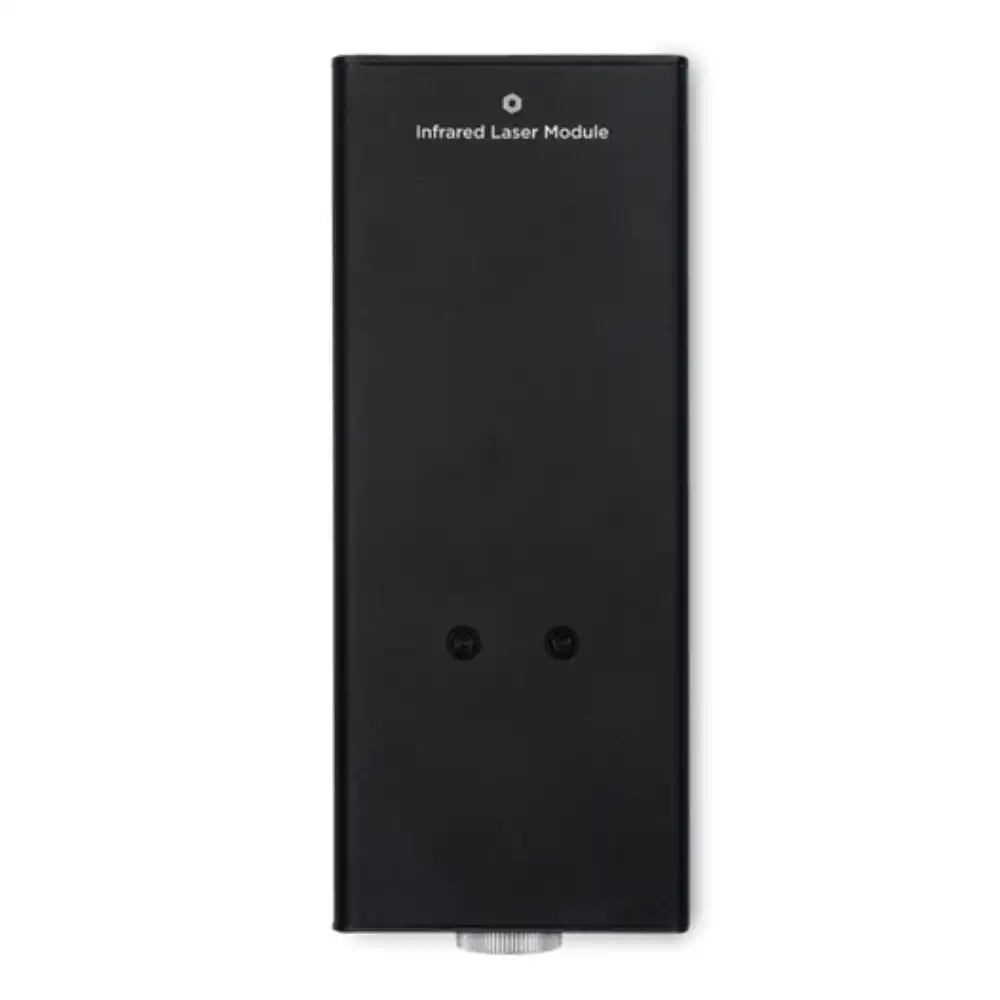

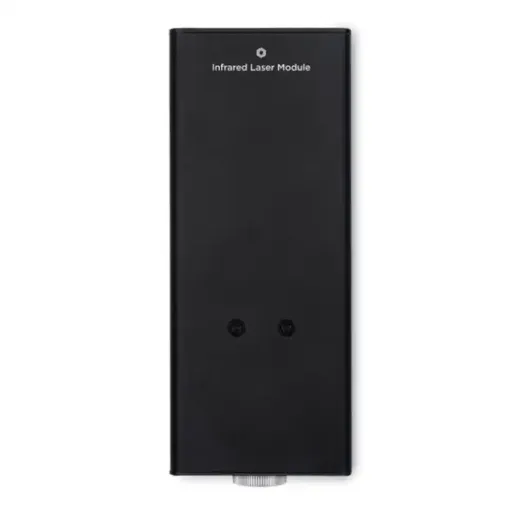

Flux Ador 2w Infrared Laser Module

The complete Ador bundle that includes the Ador 20 W, 2W Infrared Laser, the printing module with 4 solvent inks and the Beam Air, everything you need to start creating.

The Bundle includes:

Flux Ador 20 W

Flux Ador 2 W Infrared Laser Module

Flux Ador Printing Module

Flux Ador Solvent Ink Cyan

Flux Ador Solvent Ink Magenta

Flux Ador Solvent Ink Yellow

Flux Ador Solvent Ink Black

Flux Beam Air

The Flux Ador is the world's first laser cutter with a colour print module option!

This is the FLUX Ador premium diode laser cutter of 20Watt. The Ador laser cutter has a user-friendly interface, supplemented with intuitive software with advanced AI functionalities. Designed for ease of use, ideal for beginners and those who want both laser cutter and the option to add colour to their project.

Add-on modules available:

To print in colour :  Flux Ador Print Module

To engrave on metal: Flux ador 2w Infrared Laser Module

Dimensions: 64 cm x 49 cm x 23 cm

Weight: 19 kg

Working area post-installation: 430 mm x 290 mm

Maximum laser resolution: 1000 DPI

Connectivity options: Ethernet, USB, and Wi-Fi (via a Wi-Fi USB stick)

Compatible Materials for Laser Cutting with Diode Laser module (Some materials may require multiple cutting passes):

Plywood: Up to 10 mm thickness

Black Acrylic: Up to 8 mm thickness

Leather: Up to 3 mm thickness

Full information on the Flux Ador Laser Printer can be found

here

The Flux Ador is the world's first laser cutter with a colour print module option!

This is the FLUX Ador premium diode laser cutter of 10W. The Ador laser cutter has a user-friendly interface, supplemented with intuitive software with advanced AI functionalities. Designed for ease of use, ideal for beginners and those who want to both laser cut and add colour to their object.

Add-on modules available:

To print in colour :  Flux Ador Print Module

To engrave on metal: Flux ador 2w Infrared Laser Module

Dimensions: 64 cm x 49 cm x 23 cm

Weight: 19 kg

Working area post-installation: 430 mm x 300 mm

Maximum laser resolution: 1000 DPI

Connectivity options: Ethernet, USB, and Wi-Fi (via a Wi-Fi USB stick)

Compatible Materials for Laser Cutting with Diode Laser module (Some materials may require multiple cutting passes):

Plywood: Up to 8 mm thickness

Black Acrylic: Up to 5 mm thickness

Leather: Up to 3 mm thickness

Full information on the Flux Ador Laser Printer can be found

here

Elevate your designs with Ador's Print Module! Seamlessly compatible with CMYK eco solvent, it adds a pop of vibrant colour to your designs.

You can use the Printing module for your Ador in 3 different ways:

Single colour (300DPI)

Blended colour (150 PDI)

Gradient (150 DPI)

Choose one or multiple colours: (these are not included and need to be purchased separately)

Cyan

Magenta

Yellow

Black

The Flux Ador is the world's first laser cutter with a print module! This is the ink for the Flux Ador diode laser cutter in the colour Cyan.

The Ador color printer laser cutter is designed for ease of use, ideal for beginners and people who want to both laser cut and add colour to their object.

Compatible materials:

Wood - For porous materials a primer must be used

Bamboo - For porous material, a primer must be used

Cork - For porous material, a primer must be used

Board

Fabric - Beware the material is not washable

Canvas

Flat stone

Polycarbonate - Adhesion may be limited on glossy surfaces

Stainless steel - Adhesion may be limited on glossy surfaces

Glossy leather - Adhesion may be limited on glossy surfaces

Acrylic - Adhesion may be limited on glossy surfaces

The Flux Ador is the world's first laser cutter with a print module! This is the ink for the Flux Ador diode laser cutter in the colour Magenta.

The Ador color printer laser cutter is designed for ease of use, ideal for beginners and people who want to both laser cut and add colour to their object.

Compatible materials:

Wood - For porous materials a primer must be used

Bamboo - For porous material, a primer must be used

Cork - For porous material, a primer must be used

Board

Fabric - Beware the material is not washable

Canvas

Flat stone

Polycarbonate - Adhesion may be limited on glossy surfaces

Stainless steel - Adhesion may be limited on glossy surfaces

Glossy leather - Adhesion may be limited on glossy surfaces

Acrylic - Adhesion may be limited on glossy surfaces

The Flux Ador is the world's first laser cutter with a print module! This is the ink for the Flux Ador diode laser cutter in the colour Yellow.

The Ador color printer laser cutter is designed for ease of use, ideal for beginners and people who want to both laser cut and add colour to their object.

Compatible materials:

Wood - For porous materials a primer must be used

Bamboo - For porous material, a primer must be used

Cork - For porous material, a primer must be used

Board

Fabric - Beware the material is not washable

Canvas

Flat stone

Polycarbonate - Adhesion may be limited on glossy surfaces

Stainless steel - Adhesion may be limited on glossy surfaces

Glossy leather - Adhesion may be limited on glossy surfaces

Acrylic - Adhesion may be limited on glossy surfaces

The Flux Ador is the world's first laser cutter with a print module! This is the ink for the Flux Ador diode laser cutter in the colour Black.

The Ador color printer laser cutter is designed for ease of use, ideal for beginners and people who want to both laser cut and add colour to their object.

Compatible materials:

Wood - For porous materials a primer must be used

Bamboo - For porous material, a primer must be used

Cork - For porous material, a primer must be used

Board

Fabric - Beware the material is not washable

Canvas

Flat stone

Polycarbonate - Adhesion may be limited on glossy surfaces

Stainless steel - Adhesion may be limited on glossy surfaces

Glossy leather - Adhesion may be limited on glossy surfaces

Acrylic - Adhesion may be limited on glossy surfaces

Beam Air uses a highly effective 4 - layer filtration system and a brushless motor with super air intake to block harmful molecules and odors generated during laser engraving. Our Beam Air filter has been upgraded with an extra layer of filter for extra protection and cleaner air.

The filter is easy to install on your Beamo, Beambox & Beambox Pro. Your filter is ready to plug and use without any necessities.

The Beam Air filter has 4 layers of filter (replacement time):

Pre-Filter (10-30 hours)

Medium Effeciency Filter (50-150 hours)

H13 HEPA Filter (100-200 hours)

Charcoal Filter (300-600 hours)
