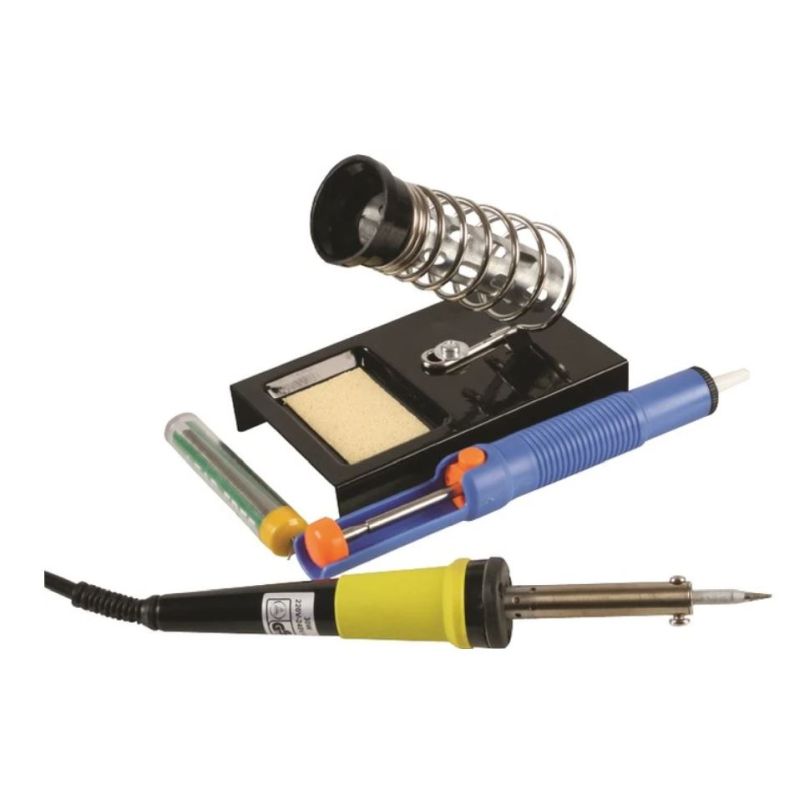

Soldering Iron Starter Kit

White Solderless Prototype PCB Board Breadboard 400 Tie-points 83mmx55mm

This learn to solder pack is the ideal low cost solution for teaching soldering in the classroom/after school club. The pack provides all of the parts and PCB's required for a class size of 25 and also includes a 9V battery for testing purposes. Each pack comprises; 25 x PCBs, 100 x 100 ohm resistors, 25 x LED's, and a 9V PP3 battery.

There is also a step by step guide to soldering, which covers; equipment, solder, tinning & cleaning, soldering in 8 steps, de-soldering in five steps, wire preparation, examples of good and bad solder joints, basic PCB repair, resistor information, LED information, full step by step build information for the kit, and how the learn to solder kit works. This guide covers everything that you might need to discuss with students and can form the basis of your lesson plan.

Using the kits and the step by step guide, each student will solder four resistors and one LED to their PCB before pressing it to the terminals of the 9V battery to check that their board works. Using the guides they will be able to examine their own work and troubleshoot problems. The battery pads on the PCBs have been shaped inline with the battery terminals on a PP3 battery making it straightforward to see which way around it should be placed on the battery.

Features:

Purpose built PCBs that can be tested, once built, with the supplied 9V PP3 battery.

Low cost classroom pack for 25 students.

Easy build kit.

Full teaching resources and step by step guides available for this kit below.

Contents:

100 x 100 ohm Resistors.

25 x Red 5mm Diffused LED - 275mCd.

25 x Learn To Solder PCBs.

1 x 9V Zinc Chloride PP3 Battery.

Dimensions:

Built Height: 11mm.

PCB Length: 31mm.

PCB Width: 21mm.

PCB Height: 1.5mm.

Requires:

Soldering Iron.

Solder.

Wire Cutters.

This is a through-hole version of the popular SparkFun Electronics Simon Says kit. The kit lets you make your own Simon Says game, where you have to copy a pattern that gets more and more difficult until you fail to copy it correctly. This version comes with an ATmega328 processor that is pre-programmed with the Simon Says code (the source code is provided below if you want to re-write it!). All components are through-hole, making this kit great for beginners. When building this kit, you'll have a chance to solder a 28-pin microprocessor, LEDs, battery clips and more.

After you have successfully assembled the kit, you will have a greater knowledge of through-hole soldering and the tools, techniques, and terminology required to populate your own PCB prototype. You will have a development platform with 5 outputs (LEDs and buzzer), 5 inputs (buttons), and serial for debugging. And, of course, you'll have your very own Simon game! Checkout the great assembly instructions. The kit even includes batteries! Assembly time varies, but for a true beginner with no soldering experience, the kit can take 20-40 minutes to assemble.

Kit Includes:

1x ATmega328 - pre-programmed with Simon firmware

1x Buzzer

2x 0.1μF Cap

1x 10K Resistor

4x LEDs (blue, yellow, red, green)

2x Slide Switch

4x Battery Clips

2x AA Batteries

1x Button pad

1x Bezel

4x Standoffs and screws

1x Assembly instructions.

Note: This ATmega328 comes pre-programmed with the Simon code as well as the STK500 serial bootloader. This serial bootloader will allow you to re-program the Simon game using the Arduino development environment if you want to change the code for your own. There is not direct support under the Arduino IDE but the 'LilyPad Arduino w/ ATmega328' should allow you to reprogram the board using Arduino. You will need a serial to USB converter such as the Breakout Board for FT232RL USB to Serial to program the reprogram the board from the Arduino environment.

The solderless TT motor adapter board is probably the best way of adding a TT motor to a project. Hands up if you've ever partially melted a motor or destroyed a lug whilst trying to solder wires to one? /raises hand... Not anymore! Not only is it easy to fit, it will extend the working life of your motors, especially in an educational environment. Re-use the motors over and over again. You won't even need to remove the TT motor adapter board between builds.

To fit; bend the motors lugs out approx 45 degrees from flat, place the board against the motor lining up the motors holes with the holes on the PCB, screw the two together. You can now connect to the board to your project with crocodile leads and you are good to go! Alternatively, if you want to use jumper cables instead of crocodile clips; choose one of three connection holes that is right for your project and fit some pins headers to the board. You will need the soldering iron for this one, but soldering to the PCB is a much more appealing proposition than soldering to the lugs on the motors. All the fun of soldering without the smell of burning plastic!

If you combine these solderless boards with our motor driver board for the BBC microbit, also solderless, you can build yourself a working programmable buggy/robot without a soldering iron! Just add a chassis, such as a flat piece of wood, cardboard or perspex, sticky pad everything to it and job done! This activity could also easily be done completely safely with younger children in primary education.

Features:

Add motors to your project without using a soldering iron.

Simple to fit and use.

Makes your budget go further by allowing you to reuse motors time and time again.

Suitable to use with older primary children.

Connect to the board using crocodile clips.

Alternatively, you can fit pin headers to the board and use jumper cables (soldering required).

500g reel of Rosin-free Leaded Solder Wire (60% Tin / 40% Lead). This solder wire incorporates flux.

Note:This product contains Lead. Due to REACH legislation sales are restricted to professional users only.

Features:

60% Tin / 40% Lead composition.

Incorporates flux.

0.7mm solder wire diameter (22SWG).

Contents:

1 x 500g Reel of Rosin Free Solder Wire.

Requires:

Soldering Iron.
