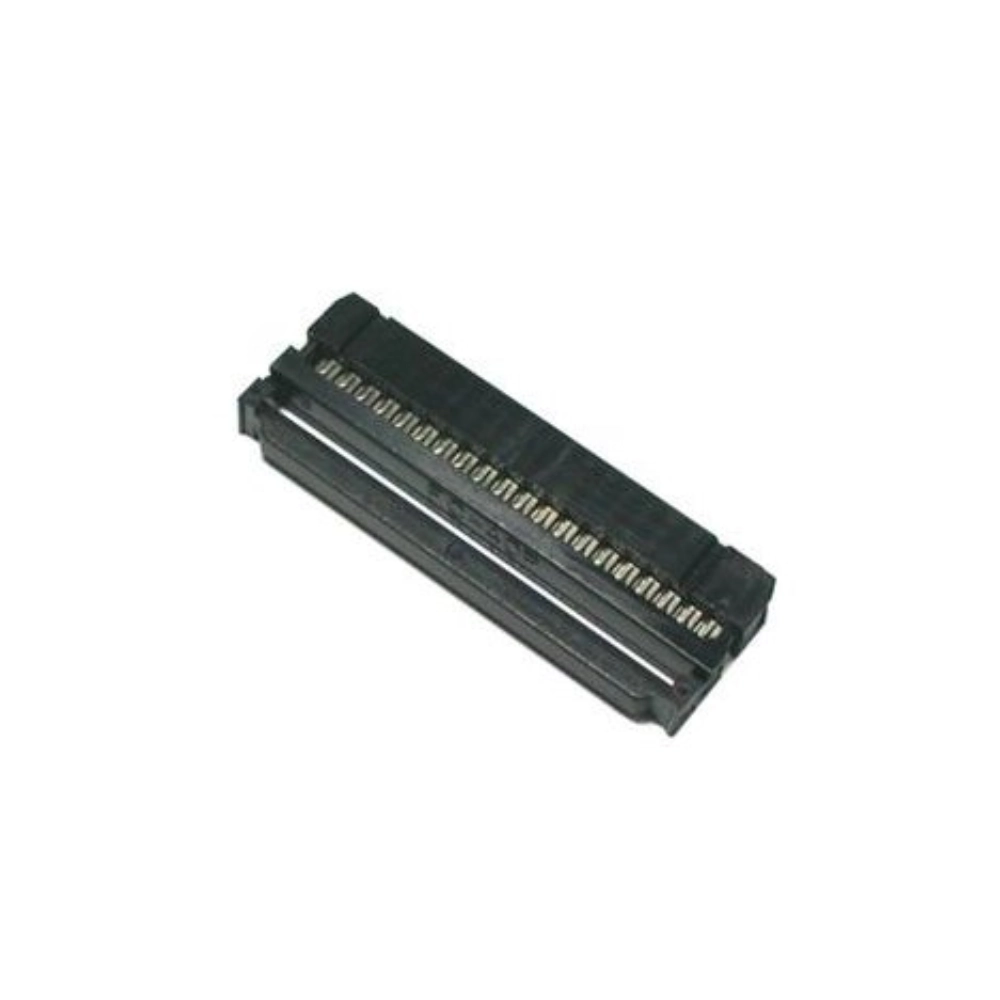

Cable Mounting Socket 20 Way Pinrex

A combined motor and gearbox unit,especially designed for educational use. The motor operates between 1.5 and 6V DC, and the unit includes interchangeable gears, giving a range of speeds and motor torques.

The clear polycarbonate housing provides mounting for both the motor and gears, and full instructions for calculating gear ratios etc. are included.

Shaft 4mm dia. x 24mm long (front).

54mm long (rear).

High torque miniature DC motor with operating range 1.5 to 6.0V. Suitable for educational and modelling applications.
Rotation is clockwise as viewed from shaft end. RoHS compliant

Nominal voltage: 3.0V

Operating range: 1.5-6.0V

No load speed: 9600 RPM ±10%

No load current: 0.25A

Speed at max. efficiency: 7790 RPM

Current at max. efficiency: 1.14A

Output: 1.58W

Torque: 19.9g-cm

Stall torque: 110g-cm min.

Stall current: 5.2A max.

Dimensions: L: 30.5 (exc. shaft) x 24mm dia.

Shaft length 10 x 2.0mm dia.

Weight 42g approx.

High torque 5 pole DC motor with wide operating range 12-24V. Suitable for water pumps, robotics etc. Rotation is counter-clockwise as viewed from shaft end.

Dimensions: L: 32.5 (exc. shaft) x 27.5mm dia.

Shaft: 12.8mm long x 2.3 dia.

Weight 52g approx.

Mounting holes 2 x M2.6 x 0.45 tapped.

RoHS compliant

Operating range: 12-24V (nominal 18V)

No load speed: 18000 RPM ±10%

No load current: 0.32A

Load speed: 14350 RPM ±8%

Current at max. efficiency: 1.3A

Rated load (with fan) 65g-cm

Output: 0.42W

Torque: 11.6g-cm

Stall torque: 55g-cm min.

Stall current: 1.4A max.

These are 20cm long jumpers with male connectors on one end and female on the other. Use these to jumper from any male or female header on any board. Multiple jumpers can be installed next to one another on a 0.1" header.

Male to Female connectors

Pack of 40 x M/F Jumpers (four of each colour)

Length: 20cm (approx)

These are 20cm long jumpers with male connectors on both ends. Use these to jumper from any female header on any board, to any other female header. Multiple jumpers can be installed next to one another on a 0.1" header.

Male to Male connectors

40 x M/M Jumpers (four of each colour)

Length: 20cm (approx)

The LED kit contains red, green & yellow LEDs in 3mm, 5mm and 10mm round sizes as well as some Colour Changing and Tri colour LEDs plus some 5mm LED panel mounting holders. 105 parts are supplied in a multiple compartment storage box.

Features:

Large selection of LEDs.

3mm, 5mm and 10mm Red LEDs.

3mm, 5mm and 10mm Green LEDs.

3mm, 5mm and 10mm Yellow LEDs.

5mm LED holders.

Colour Changing LEDs.

Tri colour 5mm diffused LEDs.

Contents:

10 x 3mm Red LEDs.

10 x 5mm Red LEDs.

5 x 10mm Red LEDs.

10 x 3mm Green LEDs.

10 x 5mm Green LEDs.

5 x 10mm Green LEDs.

10 x 3mm Yellow LEDs.

10 x 5mm Yellow LEDs.

5 x 10mm Yellow LEDs.

10 x 5mm Panel Mount LED Clips.

10 x Colour Changing 5mm LEDs.

10 x Tri Colour 5mm LEDs.

1 x LED Kit box.

Kit Box Dimensions:

Length: 174mm.

Width: 140mm.

Height: 32mm.

Compatible with:

Raspberry Pi Pico

Micro:Bit

This light-activated kit is also available as a temperature-activated project kit. The output of this board can be used to control other electronic circuits, turning them on automatically when it goes light or dark.

The board has space for an LED with a current limit resistor (both available separately) which will light when the output turns on.

The Darlington pair transistor configuration allows an output current of up to half an amp to be controlled. Operating voltage 3V to 12V (lower voltages allow for better adjustment of the switching point).

Note: This kit requires soldering.

Features:

This Light Switch Kit detects the brightness of its surroundings using a Phototransistor.

The kit acts as an automated on/off switch (light dependable) for many devices.

Contents:

1 x 1MΩ Potentiometer.

2 x BC337 NPN Transistors.

1 x Phototransistor.

1 x 220Ω Resistor.

1 x Light Activated Switch PCB

Possible applications include:

Garden light that switches on automatically at night.

Drawer alarm, which sounds when a dark drawer is opened.

Line following robot (using 2 light-activated boards).

These Miniature Buzzers are a low cost miniature transistor oscillator 6V buzzer with flying leads. They have a single-tone frequency of 400hz and a sound output of 75dB @ 200mm. They are rated for 4V - 8V (6V nominal) and a current of 25mA and the driver circuitry is built in. These buzzers are supplied as a pack of 10.

The buzzer unit is L23mm x W17mm x H15.5mm, with fixing centres at 27.5mm, which gives a total length measurement of 33.5mm. The colour-coded (red & black) flying leads are 100mm. To ensure optimum performance and to protect the buzzer, ensure that the supply (e.g. batteries) is connected in the correct configuration.

Features:

Low-cost miniature transistor oscillator 6V buzzer with 100mm flying leads.

They have a single-tone frequency of 400hz and a sound output of 75dB @ 200mm.

Driver circuitry is built in.

Rated for 4V - 8V (6V nominal) and a current of 25mA.

L23mm x W17mm x H15mm, with fixing centres at 27.5mm, which gives a total length measurement of 33.5mm.

Supplied as a pack of 10.

Dimensions:

Length: 23mm.

Width: 17mm.

Height: 15.5mm.

Fixing Centres: 27.5mm.

Total Length: 33.5mm.

This is a through-hole version of the popular SparkFun Electronics Simon Says kit. The kit lets you make your own Simon Says game, where you have to copy a pattern that gets more and more difficult until you fail to copy it correctly. This version comes with an ATmega328 processor that is pre-programmed with the Simon Says code (the source code is provided below if you want to re-write it!). All components are through-hole, making this kit great for beginners. When building this kit, you'll have a chance to solder a 28-pin microprocessor, LEDs, battery clips and more.

After you have successfully assembled the kit, you will have a greater knowledge of through-hole soldering and the tools, techniques, and terminology required to populate your own PCB prototype. You will have a development platform with 5 outputs (LEDs and buzzer), 5 inputs (buttons), and serial for debugging. And, of course, you'll have your very own Simon game! Checkout the great assembly instructions. The kit even includes batteries! Assembly time varies, but for a true beginner with no soldering experience, the kit can take 20-40 minutes to assemble.

Kit Includes:

1x ATmega328 - pre-programmed with Simon firmware

1x Buzzer

2x 0.1μF Cap

1x 10K Resistor

4x LEDs (blue, yellow, red, green)

2x Slide Switch

4x Battery Clips

2x AA Batteries

1x Button pad

1x Bezel

4x Standoffs and screws

1x Assembly instructions.

Note: This ATmega328 comes pre-programmed with the Simon code as well as the STK500 serial bootloader. This serial bootloader will allow you to re-program the Simon game using the Arduino development environment if you want to change the code for your own. There is not direct support under the Arduino IDE but the 'LilyPad Arduino w/ ATmega328' should allow you to reprogram the board using Arduino. You will need a serial to USB converter such as the Breakout Board for FT232RL USB to Serial to program the reprogram the board from the Arduino environment.
